데이터 시각화와 기술 통계(2)

Weekly content

Descriptive Statistics


This chapter introduces descriptive statistics, which summarize and describe the main features of a dataset. Descriptive statistics are the foundation of exploratory data analysis (EDA) and are used to understand the basic structure and characteristics of data before moving on to more complex analysis.

We’ll explore measures of central tendency (mean, median, mode), measures of variability (variance, standard deviation, range, IQR), and distribution (skewness, kurtosis). In this chapter, we will also introduce some key R functions and simulate data to illustrate these concepts.


Table of Contents

  1. Introduction to Descriptive Statistics

  2. Generating Data for Simulation

  3. Measures of Central Tendency

  4. Measures of Variability

  5. Visualizing Data Distribution

  6. Skewness and Kurtosis

  7. Summary Statistics Using R Functions

  8. Exercises


1. Introduction to Descriptive Statistics

Descriptive statistics help summarize data by providing key insights into the data’s central tendency, spread, and overall shape of the distribution.

  • Central Tendency: Mean, median, and mode.

  • Variability: Variance, standard deviation, range, and interquartile range (IQR).

  • Distribution: Shape of the distribution including skewness and kurtosis.


2. Generating Data for Simulation

We’ll start by generating some synthetic data to demonstrate descriptive statistics using the rnorm() function to generate data from a normal distribution and runif() for a uniform distribution.

# Simulate normally distributed data (mean = 50, sd = 10)
# About many types of distributions (normal, uniform, etc), we'll learn later
set.seed(123)
data_normal <- rnorm(1000, mean = 50, sd = 10)

# Simulate uniformly distributed data (min = 10, max = 90)
data_uniform <- runif(1000, min = 10, max = 90)

# Summary of the datasets
summary(data_normal)
   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
  21.90   43.72   50.09   50.16   56.65   82.41
summary(data_uniform)
   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
  10.28   28.68   49.72   49.89   69.67   89.97


# Histogram of normally distributed data
library(tidyverse)
── Attaching core tidyverse packages ──────────────────────── tidyverse 2.0.0 ──
✔ dplyr     1.1.4     ✔ readr     2.1.5
✔ forcats   1.0.0     ✔ stringr   1.5.1
✔ ggplot2   3.5.1     ✔ tibble    3.2.1
✔ lubridate 1.9.3     ✔ tidyr     1.3.1
✔ purrr     1.0.2
── Conflicts ────────────────────────────────────────── tidyverse_conflicts() ──
✖ dplyr::filter() masks stats::filter()
✖ dplyr::lag()    masks stats::lag()
ℹ Use the conflicted package (<http://conflicted.r-lib.org/>) to force all conflicts to become errors
ggplot(data.frame(x = data_normal), aes(x)) +
  geom_histogram(bins = 30, fill = "grey", alpha = 0.9) +
  labs(title = "Histogram of Normally Distributed Data", x = "Value", y = "Frequency") +
  theme_minimal()

# Histogram of uniformly distributed data
ggplot(data.frame(x = data_uniform), aes(x)) +
  geom_histogram(bins = 30, fill = "grey", alpha = 0.9) +
  labs(title = "Histogram of Uniformly Distributed Data", x = "Value", y = "Frequency") +
  theme_minimal()


3. Measures of Central Tendency

The central tendency refers to the “center” of a dataset. The most common measures of central tendency are the mean, median, and mode.

  • Mean: The arithmetic average of the data.

\[ \frac{\sum^{n}_{i=1}x_i}{n} \]

  • Median: The middle value when the data is ordered.

    • Arrange the data in increasing order.
    • If the number of observations \(n\) is odd, the median is the value at position \(\frac{n + 1}{2}\).
    • If \(n\) is even, the median is the average of the values at positions \(\frac{n}{2}\) and \(\frac{n}{2} + 1\).
  • Mode: The value that occurs most frequently.

  • Moving Average: The moving average smooths out short-term fluctuations to highlight longer-term trends in a time series dataset. It is commonly used in time series analysis and forecasting.

    • Simple Moving Average (SMA): An unweighted average of the previous N data points (default).

    • Weighted Moving Average (WMA): Weights the data points, giving more importance to recent data.

    • Exponential Moving Average (EMA): Similar to WMA but the weighting factor decreases exponentially for older data points.

# Mean, median, and mode for normally distributed data
mean_normal <- mean(data_normal)
median_normal <- median(data_normal)
mode_normal <- as.numeric(names(sort(table(data_normal), decreasing = TRUE)[1]))

# Mean, median, and mode for uniformly distributed data
mean_uniform <- mean(data_uniform)
median_uniform <- median(data_uniform)
mode_uniform <- as.numeric(names(sort(table(data_uniform), decreasing = TRUE)[1]))

# Display results
cat("Normal Distribution - Mean:", mean_normal, "Median:", median_normal, "Mode:", mode_normal, "\n")
Normal Distribution - Mean: 50.16128 Median: 50.0921 Mode: 21.90225
cat("Uniform Distribution - Mean:", mean_uniform, "Median:", median_uniform, "Mode:", mode_uniform, "\n")
Uniform Distribution - Mean: 49.88829 Median: 49.717 Mode: 10.28128


4. Measures of Variability

Variability tells us how spread out the data points are. Common measures of variability include range, variance, standard deviation, and interquartile range (IQR).

  • Range: The difference between the maximum and minimum values.

  • Variance: The average squared deviation from the mean.

\[ \text{Variance} = \sigma^2 = \frac{1}{n} \sum_{i=1}^{n} (x_i - \mu)^2 \]

  • Standard Deviation: The square root of variance, representing the spread of data.

\[ \text{Standard Deviation} = \sigma = \sqrt{\frac{1}{n} \sum_{i=1}^{n} (x_i - \mu)^2} \]

  • Interquartile Range (IQR): The range between the 25th percentile (Q1) and the 75th percentile (Q3).
# Variability measures for normally distributed data
range_normal <- range(data_normal)
var_normal <- var(data_normal)
sd_normal <- sd(data_normal)
iqr_normal <- IQR(data_normal)

# Variability measures for uniformly distributed data
range_uniform <- range(data_uniform)
var_uniform <- var(data_uniform)
sd_uniform <- sd(data_uniform)
iqr_uniform <- IQR(data_uniform)

# Display results
cat("Normal Distribution - Range:", range_normal, "Variance:", var_normal, "SD:", sd_normal, "IQR:", iqr_normal, "\n")
Normal Distribution - Range: 21.90225 82.4104 Variance: 98.34589 SD: 9.91695 IQR: 12.92926
cat("Uniform Distribution - Range:", range_uniform, "Variance:", var_uniform, "SD:", sd_uniform, "IQR:", iqr_uniform, "\n")
Uniform Distribution - Range: 10.28128 89.97208 Variance: 546.4433 SD: 23.37613 IQR: 40.98324


5. Visualizing Data Distribution

To understand the distribution of data, it is helpful to visualize it. We can use histograms and boxplots to explore the distribution of our datasets.


# Install ggplot2 if not already installed
if (!require(ggplot2)) install.packages("ggplot2")

library(ggplot2)

# Histogram of normally distributed data
ggplot(data.frame(x = data_normal), aes(x)) +
  geom_histogram(bins = 30, fill = "blue", alpha = 0.7) +
  labs(title = "Histogram of Normally Distributed Data", x = "Value", y = "Frequency") +
  theme_minimal()

# Boxplot of uniformly distributed data
ggplot(data.frame(x = data_uniform), aes(y = x)) +
  geom_boxplot(fill = "green", alpha = 0.7) +
  labs(title = "Boxplot of Uniformly Distributed Data", y = "Value") +
  theme_minimal()

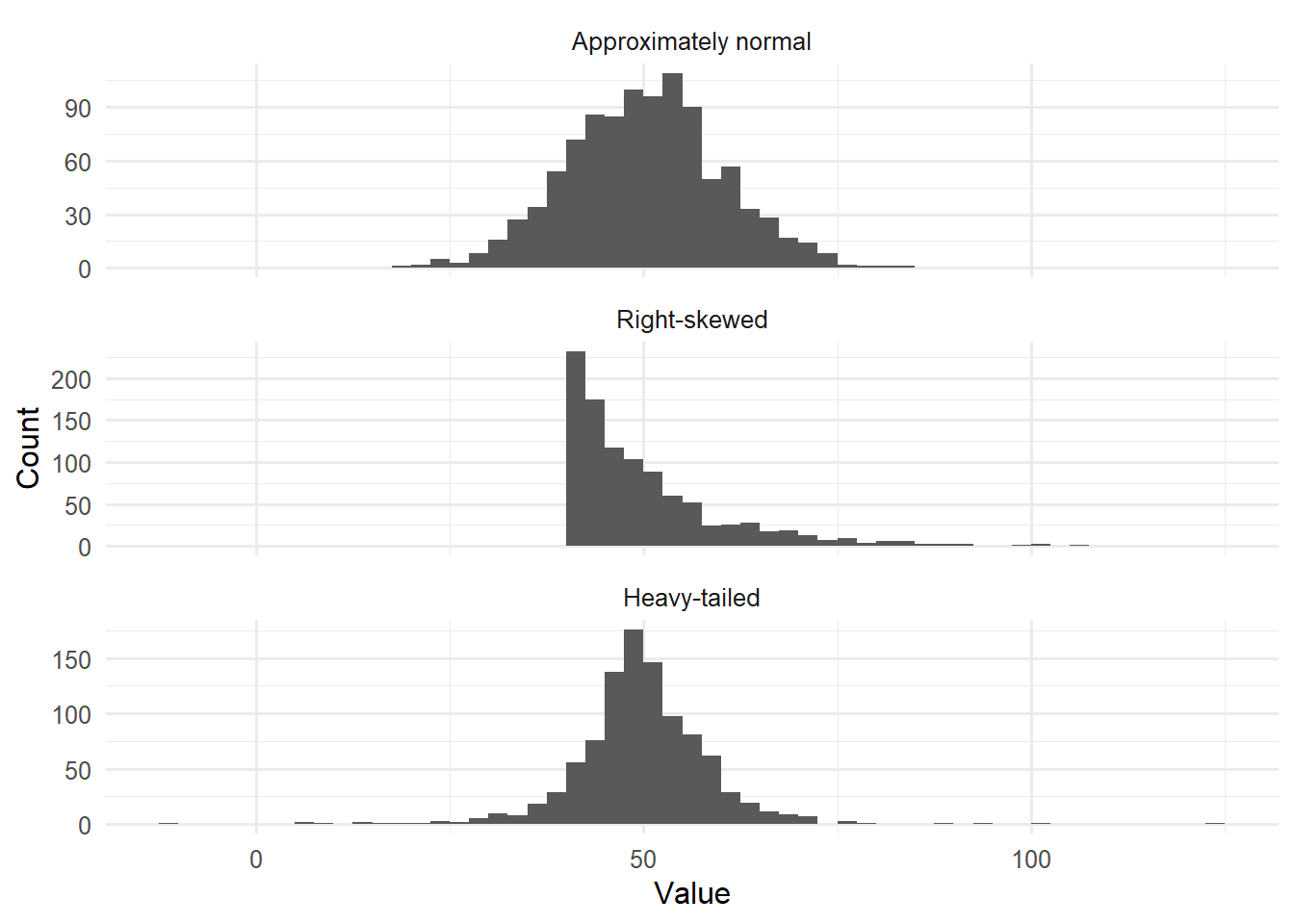

6. Skewness and Kurtosis

Skewness measures the asymmetry of the distribution, while kurtosis measures the tailedness of the distribution.

Skewness: If skewness is near 0, the distribution is symmetrical. Positive skewness indicates a right-skewed distribution, while negative skewness indicates a left-skewed distribution.

\[ \text{Skewness} = \frac{n}{(n-1)(n-2)} \sum_{i=1}^{n} \left( \frac{x_i - \bar{x}}{s} \right)^3 \]

  • n is the number of data points.

  • \(x_i\) is each individual data point.

  • \(\bar{x}\) is the sample mean of the data.

  • s is the sample standard deviation.

Kurtosis: High kurtosis indicates heavy tails, while low kurtosis indicates light tails.

\[ \text{Kurtosis} = \frac{n(n+1)}{(n-1)(n-2)(n-3)} \sum_{i=1}^{n} \left( \frac{x_i - \bar{x}}{s} \right)^4 - \frac{3(n-1)^2}{(n-2)(n-3)} \]

  • n is the number of data points.

  • \(x_i\) is each individual data point.

  • \(\bar{x}\) is the sample mean of the data.

  • s is the sample standard deviation.

Where:

We can use the moments package to calculate skewness and kurtosis.

# Install moments package if not already installed
if (!require(moments)) install.packages("moments")
Loading required package: moments
library(moments)

# Skewness and Kurtosis for Normal Data
skewness_normal <- skewness(data_normal)
kurtosis_normal <- kurtosis(data_normal)

# Skewness and Kurtosis for Uniform Data
skewness_uniform <- skewness(data_uniform)
kurtosis_uniform <- kurtosis(data_uniform)

# Display Results
cat("Normal Distribution - Skewness:", skewness_normal, "Kurtosis:", kurtosis_normal, "\n")
Normal Distribution - Skewness: 0.06529391 Kurtosis: 2.925747
cat("Uniform Distribution - Skewness:", skewness_uniform, "Kurtosis:", kurtosis_uniform, "\n")
Uniform Distribution - Skewness: -0.01377659 Kurtosis: 1.748754


# Plotting Histograms for Visual Representation
par(mfrow = c(1, 2))  # Plot side by side

# Histogram for Normal Distribution
hist(data_normal, breaks = 30, col = "lightblue", main = "Normal Distribution",
     xlab = "Value", ylab = "Frequency", freq = TRUE)
mtext(paste("Skewness:", round(skewness_normal, 2), "Kurtosis:", round(kurtosis_normal, 2)), side = 3)

# Histogram for Uniform Distribution
hist(data_uniform, breaks = 30, col = "lightgreen", main = "Uniform Distribution",
     xlab = "Value", ylab = "Frequency", freq = TRUE)
mtext(paste("Skewness:", round(skewness_uniform, 2), "Kurtosis:", round(kurtosis_uniform, 2)), side = 3)

par(mfrow = c(1, 1))  # Reset plot layout


library(moments)

# Generate Normal data
set.seed(123)
data_normal <- rnorm(1000, mean = 0, sd = 1)

# Skewed Data (Cube Transformation)
data_skewed <- data_normal^3

# Data with High Kurtosis (Heavy Tails) - t-distribution
data_high_kurtosis <- rt(1000, df = 3)  # df = 3 gives heavier tails than normal

# Skewness and Kurtosis Calculations
skewness_normal <- skewness(data_normal)
kurtosis_normal <- kurtosis(data_normal)

skewness_skewed <- skewness(data_skewed)
kurtosis_skewed <- kurtosis(data_skewed)

skewness_high_kurtosis <- skewness(data_high_kurtosis)
kurtosis_high_kurtosis <- kurtosis(data_high_kurtosis)

# Display Results
cat("Normal Distribution - Skewness:", skewness_normal, "Kurtosis:", kurtosis_normal, "\n")
Normal Distribution - Skewness: 0.06529391 Kurtosis: 2.925747
cat("Skewed Distribution - Skewness:", skewness_skewed, "Kurtosis:", kurtosis_skewed, "\n")
Skewed Distribution - Skewness: 1.187645 Kurtosis: 21.18439
cat("High Kurtosis Distribution - Skewness:", skewness_high_kurtosis, "Kurtosis:", kurtosis_high_kurtosis, "\n")
High Kurtosis Distribution - Skewness: 0.459809 Kurtosis: 9.387089
# Plotting Histograms for Visual Representation
par(mfrow = c(2, 2))  # Plot side by side

# Histogram for Normal Distribution
hist(data_normal, breaks = 30, col = "lightblue", main = "Normal Distribution",
     xlab = "Value", ylab = "Frequency", freq = TRUE)
mtext(paste("Skewness:", round(skewness_normal, 2), "Kurtosis:", round(kurtosis_normal, 2)), side = 3)

# Histogram for Skewed Distribution (Cubed)
hist(data_skewed, breaks = 30, col = "lightcoral", main = "Skewed Distribution",
     xlab = "Value", ylab = "Frequency", freq = TRUE)
mtext(paste("Skewness:", round(skewness_skewed, 2), "Kurtosis:", round(kurtosis_skewed, 2)), side = 3)

# Histogram for High Kurtosis Distribution (t-distribution)
hist(data_high_kurtosis, breaks = 30, col = "lightgreen", main = "High Kurtosis Distribution",
     xlab = "Value", ylab = "Frequency", freq = TRUE)
mtext(paste("Skewness:", round(skewness_high_kurtosis, 2), "Kurtosis:", round(kurtosis_high_kurtosis, 2)), side = 3)

par(mfrow = c(1, 1))  # Reset plot layout


7. Summary Statistics Using R Functions

R provides a convenient function, summary(), to calculate descriptive statistics such as the mean, median, minimum, maximum, and quartiles in one command.

# Summary statistics for normally distributed data
summary(data_normal)
    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
-2.80978 -0.62832  0.00921  0.01613  0.66460  3.24104
# Summary statistics for uniformly distributed data
summary(data_uniform)
   Min. 1st Qu.  Median    Mean 3rd Qu.    Max.
  10.28   28.68   49.72   49.89   69.67   89.97


8. Exercises

  1. Generate a dataset of 1000 observations from an exponential distribution (no worries, this is the next week content) with a rate parameter of 0.1. Calculate the mean, median, mode, variance, standard deviation, range, and IQR of the data.

  2. Visualize the distribution of the exponential dataset using both a histogram and a boxplot.

  3. Calculate the skewness and kurtosis of the exponential dataset.

  4. Use the summary() function to summarize the key descriptive statistics of the exponential dataset.

Solutions for Exercises:

  1. Exponential Distribution Simulation:
data_exp <- rexp(1000, rate = 0.1)

mean(data_exp)
[1] 10.11986
median(data_exp)
[1] 7.173714
# Mode not well-defined for continuous data, so skipped here
var(data_exp)
[1] 99.30837
sd(data_exp)
[1] 9.965359
range(data_exp)
[1]  0.01367483 76.23343926
IQR(data_exp)
[1] 11.38398
  1. Visualization:
ggplot(data.frame(x = data_exp), aes(x)) +
  geom_histogram(bins = 30, fill = "purple", alpha = 0.7) +
  labs(title = "Histogram of Exponentially Distributed Data", x = "Value", y = "Frequency") +
  theme_minimal()

ggplot(data.frame(x = data_exp), aes(y = x)) +
  geom_boxplot(fill = "orange", alpha = 0.7) +
  labs(title = "Boxplot of Exponentially Distributed Data", y = "Value") +
  theme_minimal()

  1. Skewness and Kurtosis:
skewness(data_exp)
[1] 1.923678
kurtosis(data_exp)
[1] 8.24182
  1. Summary:
summary(data_exp)
    Min.  1st Qu.   Median     Mean  3rd Qu.     Max.
 0.01367  2.97068  7.17371 10.11986 14.35466 76.23344




Practice with a Titanic dataset


1. Introduction


It contains the analysis process of ‘Titanic’, one of the representative ‘Competition’ of ‘Kaggle’. The Titanic dataset is one of the most famous datasets used in data science and machine learning, often introduced in beginner-level courses due to its simplicity and well-documented historical context. It contains information about the passengers aboard the RMS Titanic, a British passenger liner that tragically sank after colliding with an iceberg on its maiden voyage from Southampton to New York City in April 1912. Of the 2,224 passengers and crew on board, more than 1,500 lost their lives, making it one of the deadliest peacetime maritime disasters in history. The dataset allows for analysis of the survival rate based on factors such as class, gender, and family size, reflecting real-world patterns of survival in this tragic event.


2. Prepare to work


2.1 Packages

This is the process of loading (loading) the Packages I used for analysis, in addition to the representative Packages of R, such as tidyverse (including ggplot2 and dplyr).


# Data input, assesment
library(titanic)
# library(readr)           # Data input with readr::read_csv()
library(descr)           # descr::CrossTable() - Frequency by category, check with ratio figures

# Visualization
library(VIM)             # Missing values assesment used by VIM::aggr()
library(RColorBrewer)    # Plot color setting
library(scales)          # plot setting - x, y axis

# Feature engineering, Data Pre-processing
library(tidyverse)     # dplyr, ggplot2, purrr, etc..      # Feature Engineering & Data Pre-processing
library(ggpubr)

# library(randomForest)
# Model validation
# library(caret)           # caret::confusionMatrix()
# library(ROCR)            # Plotting ROC Curve


2.2 Raw data import


In titanic competition, train data used to create Model and test data used for actual prediction (estimation) are separated.

Here, we will load those two data and combine them into one. The reason for tying the separate data together is to work the same when feature engineering and pre-processing the input variables used in modeling.

Please see this link if you want to know about the story of Titanic.


titanic_train %>% glimpse
Rows: 891
Columns: 12
$ PassengerId <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17,…
$ Survived    <int> 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 1, 0, 1, 0, 1…
$ Pclass      <int> 3, 1, 3, 1, 3, 3, 1, 3, 3, 2, 3, 1, 3, 3, 3, 2, 3, 2, 3, 3…
$ Name        <chr> "Braund, Mr. Owen Harris", "Cumings, Mrs. John Bradley (Fl…
$ Sex         <chr> "male", "female", "female", "female", "male", "male", "mal…
$ Age         <dbl> 22, 38, 26, 35, 35, NA, 54, 2, 27, 14, 4, 58, 20, 39, 14, …
$ SibSp       <int> 1, 1, 0, 1, 0, 0, 0, 3, 0, 1, 1, 0, 0, 1, 0, 0, 4, 0, 1, 0…
$ Parch       <int> 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 1, 0, 0, 5, 0, 0, 1, 0, 0, 0…
$ Ticket      <chr> "A/5 21171", "PC 17599", "STON/O2. 3101282", "113803", "37…
$ Fare        <dbl> 7.2500, 71.2833, 7.9250, 53.1000, 8.0500, 8.4583, 51.8625,…
$ Cabin       <chr> "", "C85", "", "C123", "", "", "E46", "", "", "", "G6", "C…
$ Embarked    <chr> "S", "C", "S", "S", "S", "Q", "S", "S", "S", "C", "S", "S"…
titanic_test %>% glimpse
Rows: 418
Columns: 11
$ PassengerId <int> 892, 893, 894, 895, 896, 897, 898, 899, 900, 901, 902, 903…
$ Pclass      <int> 3, 3, 2, 3, 3, 3, 3, 2, 3, 3, 3, 1, 1, 2, 1, 2, 2, 3, 3, 3…
$ Name        <chr> "Kelly, Mr. James", "Wilkes, Mrs. James (Ellen Needs)", "M…
$ Sex         <chr> "male", "female", "male", "male", "female", "male", "femal…
$ Age         <dbl> 34.5, 47.0, 62.0, 27.0, 22.0, 14.0, 30.0, 26.0, 18.0, 21.0…
$ SibSp       <int> 0, 1, 0, 0, 1, 0, 0, 1, 0, 2, 0, 0, 1, 1, 1, 1, 0, 0, 1, 0…
$ Parch       <int> 0, 0, 0, 0, 1, 0, 0, 1, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0, 0…
$ Ticket      <chr> "330911", "363272", "240276", "315154", "3101298", "7538",…
$ Fare        <dbl> 7.8292, 7.0000, 9.6875, 8.6625, 12.2875, 9.2250, 7.6292, 2…
$ Cabin       <chr> "", "", "", "", "", "", "", "", "", "", "", "", "B45", "",…
$ Embarked    <chr> "Q", "S", "Q", "S", "S", "S", "Q", "S", "C", "S", "S", "S"…
train <- titanic_train
test  <- titanic_test

full <- dplyr::bind_rows(train, test)
full %>% glimpse
Rows: 1,309
Columns: 12
$ PassengerId <int> 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17,…
$ Survived    <int> 0, 1, 1, 1, 0, 0, 0, 0, 1, 1, 1, 1, 0, 0, 0, 1, 0, 1, 0, 1…
$ Pclass      <int> 3, 1, 3, 1, 3, 3, 1, 3, 3, 2, 3, 1, 3, 3, 3, 2, 3, 2, 3, 3…
$ Name        <chr> "Braund, Mr. Owen Harris", "Cumings, Mrs. John Bradley (Fl…
$ Sex         <chr> "male", "female", "female", "female", "male", "male", "mal…
$ Age         <dbl> 22, 38, 26, 35, 35, NA, 54, 2, 27, 14, 4, 58, 20, 39, 14, …
$ SibSp       <int> 1, 1, 0, 1, 0, 0, 0, 3, 0, 1, 1, 0, 0, 1, 0, 0, 4, 0, 1, 0…
$ Parch       <int> 0, 0, 0, 0, 0, 0, 0, 1, 2, 0, 1, 0, 0, 5, 0, 0, 1, 0, 0, 0…
$ Ticket      <chr> "A/5 21171", "PC 17599", "STON/O2. 3101282", "113803", "37…
$ Fare        <dbl> 7.2500, 71.2833, 7.9250, 53.1000, 8.0500, 8.4583, 51.8625,…
$ Cabin       <chr> "", "C85", "", "C123", "", "", "E46", "", "", "", "G6", "C…
$ Embarked    <chr> "S", "C", "S", "S", "S", "Q", "S", "S", "S", "C", "S", "S"…

The reason why rbind() was not used even when combining the two data into full is that Survived, the dependent variable (target variable, Y) of Titanic competition, does not exist in test. Therefore, the dimensions (dimension) of the two data do not match, so they are not merged with rbind(). However, if you use dplyr::bind_rows(), Survived in test is treated as NA and merged into one.

2.3 variable meaning explanation

variable name Interpretation (meaning) Type
PassengerID Unique ID number that identifies the passenger Int
Survived Indicates whether or not the passenger survived. Survival is 1 and death is 0. Factor
Pclass The class of the cabin, with 3 categories from 1st class (1) to 3rd class (3). Ord.Factor
Name Passenger’s name Factor
Sex Passenger’s gender Factor
Age Age of passenger Numeric
SibSp Variable describing the number of siblings or spouses accompanying each passenger. It can range from 0 to 8. Integer
Parch Variable describing the number of parents or children accompanying each passenger, from 0 to 9. Integer
Ticket String variable for the ticket the passenger boarded Factor
Fare Variable for how much the passenger has paid for the trip so far Numeric
Cabin Variable that distinguishes each passenger’s cabin, with too many categories and missing values. Factor
Embarked

Indicates the boarding port and departure port, and consists of three categories: C, Q, and S.

(C = Cherbourg, Q = Queenstown, S = Southampton).

Factor


2.4 Change the variables type


Before the full-scale EDA and feature engineering, let’s transform some variable properties. For example, Pclass is treated as numeric, but actually 1, 2, 3 are factors representing 1st, 2nd, and 3rd grades.


full <- full %>%
  dplyr::mutate(Survived = factor(Survived),
                Pclass   = factor(Pclass, ordered = T),
                Name     = factor(Name),
                Sex      = factor(Sex),
                Ticket   = factor(Ticket),
                Cabin    = factor(Cabin),
                Embarked = factor(Embarked))


3. EDA : Exploratory data analysis


It is the process of exploring and understanding raw data, such as how data is structured and whether there are missing values or outliers in it.

We will use various functions and visualizations here.


3.1 Data confirmation using numerical values

First of all, let’s check the data through the output of various functions such as head() and summary().


3.1.2 str()


str(full)
'data.frame':   1309 obs. of  12 variables:
 $ PassengerId: int  1 2 3 4 5 6 7 8 9 10 ...
 $ Survived   : Factor w/ 2 levels "0","1": 1 2 2 2 1 1 1 1 2 2 ...
 $ Pclass     : Ord.factor w/ 3 levels "1"<"2"<"3": 3 1 3 1 3 3 1 3 3 2 ...
 $ Name       : Factor w/ 1307 levels "Abbing, Mr. Anthony",..: 156 287 531 430 23 826 775 922 613 855 ...
 $ Sex        : Factor w/ 2 levels "female","male": 2 1 1 1 2 2 2 2 1 1 ...
 $ Age        : num  22 38 26 35 35 NA 54 2 27 14 ...
 $ SibSp      : int  1 1 0 1 0 0 0 3 0 1 ...
 $ Parch      : int  0 0 0 0 0 0 0 1 2 0 ...
 $ Ticket     : Factor w/ 929 levels "110152","110413",..: 721 817 915 66 650 374 110 542 478 175 ...
 $ Fare       : num  7.25 71.28 7.92 53.1 8.05 ...
 $ Cabin      : Factor w/ 187 levels "","A10","A11",..: 1 108 1 72 1 1 165 1 1 1 ...
 $ Embarked   : Factor w/ 4 levels "","C","Q","S": 4 2 4 4 4 3 4 4 4 2 ...


By combining the train and test data, the total number of observations (record, row, row) is 1309 (train: 891, test: 418), and the number of variables (column, feature, variable, column) is 12.

In addition, you can find out what the attributes of each variable are and how many categories there are for variables that are factor attributes.

In addition, in head(), it can be seen that the missing value (NA), which was thought to exist only in Age, also exists in other variables including Cabin.


3.1.3 summary()


summary(full)
  PassengerId   Survived   Pclass                                Name
 Min.   :   1   0   :549   1:323   Connolly, Miss. Kate            :   2
 1st Qu.: 328   1   :342   2:277   Kelly, Mr. James                :   2
 Median : 655   NA's:418   3:709   Abbing, Mr. Anthony             :   1
 Mean   : 655                      Abbott, Master. Eugene Joseph   :   1
 3rd Qu.: 982                      Abbott, Mr. Rossmore Edward     :   1
 Max.   :1309                      Abbott, Mrs. Stanton (Rosa Hunt):   1
                                   (Other)                         :1301
     Sex           Age            SibSp            Parch            Ticket
 female:466   Min.   : 0.17   Min.   :0.0000   Min.   :0.000   CA. 2343:  11
 male  :843   1st Qu.:21.00   1st Qu.:0.0000   1st Qu.:0.000   1601    :   8
              Median :28.00   Median :0.0000   Median :0.000   CA 2144 :   8
              Mean   :29.88   Mean   :0.4989   Mean   :0.385   3101295 :   7
              3rd Qu.:39.00   3rd Qu.:1.0000   3rd Qu.:0.000   347077  :   7
              Max.   :80.00   Max.   :8.0000   Max.   :9.000   347082  :   7
              NA's   :263                                      (Other) :1261
      Fare                     Cabin      Embarked
 Min.   :  0.000                  :1014    :  2
 1st Qu.:  7.896   C23 C25 C27    :   6   C:270
 Median : 14.454   B57 B59 B63 B66:   5   Q:123
 Mean   : 33.295   G6             :   5   S:914
 3rd Qu.: 31.275   B96 B98        :   4
 Max.   :512.329   C22 C26        :   4
 NA's   :1         (Other)        : 271


summary() provides a lot of information about the data.

The representative values of quantitative variables (Integer, Numeric), the number of categories of categorical (Factor) variables, and the number of observations belonging to each category are all shown as numerical values.

Here are the things to check and move on:

  • Survived: This is the target variable for this competition, and 418 missing values are due to the test data.

  • Pclass: There are three categories of 1st class, 2nd class, and 3rd class, and 3rd class passengers are the most.

  • Name: There are people with similar names. So you can see that some passengers are traveling alone, while others are traveling with their families.

  • Sex: There are almost twice as many males as females.

  • Age: It ranges from 0.17 to 80 years old, but it seems necessary to check whether it is an outlier that incorrectly entered 17, and there are 263 missing values.

  • SibSp: From 0 to 8, and the 3rd quartile is 1, so it can be seen that you boarded the Titanic with a couple or siblings.

  • Parch: It ranges from 0 to 9, but the fact that the 3rd quartile is 0 indicates that there are very few passengers with parents and children.

  • Both SibSp and Parch are variables representing family relationships. Through this, we will find out the total number of people in the family, although we do not know who was on board, and based on that, we will create a categorical derived variable called FamilySized that represents the size of the family.

  • Ticket: Looking at the result of 3.1.2 str(), you can see that some passengers have exactly the same ticket, some passengers have tickets overlapping only a certain part, and some passengers have completely different tickets. We plan to use this to create a derived variable called ticket.size.

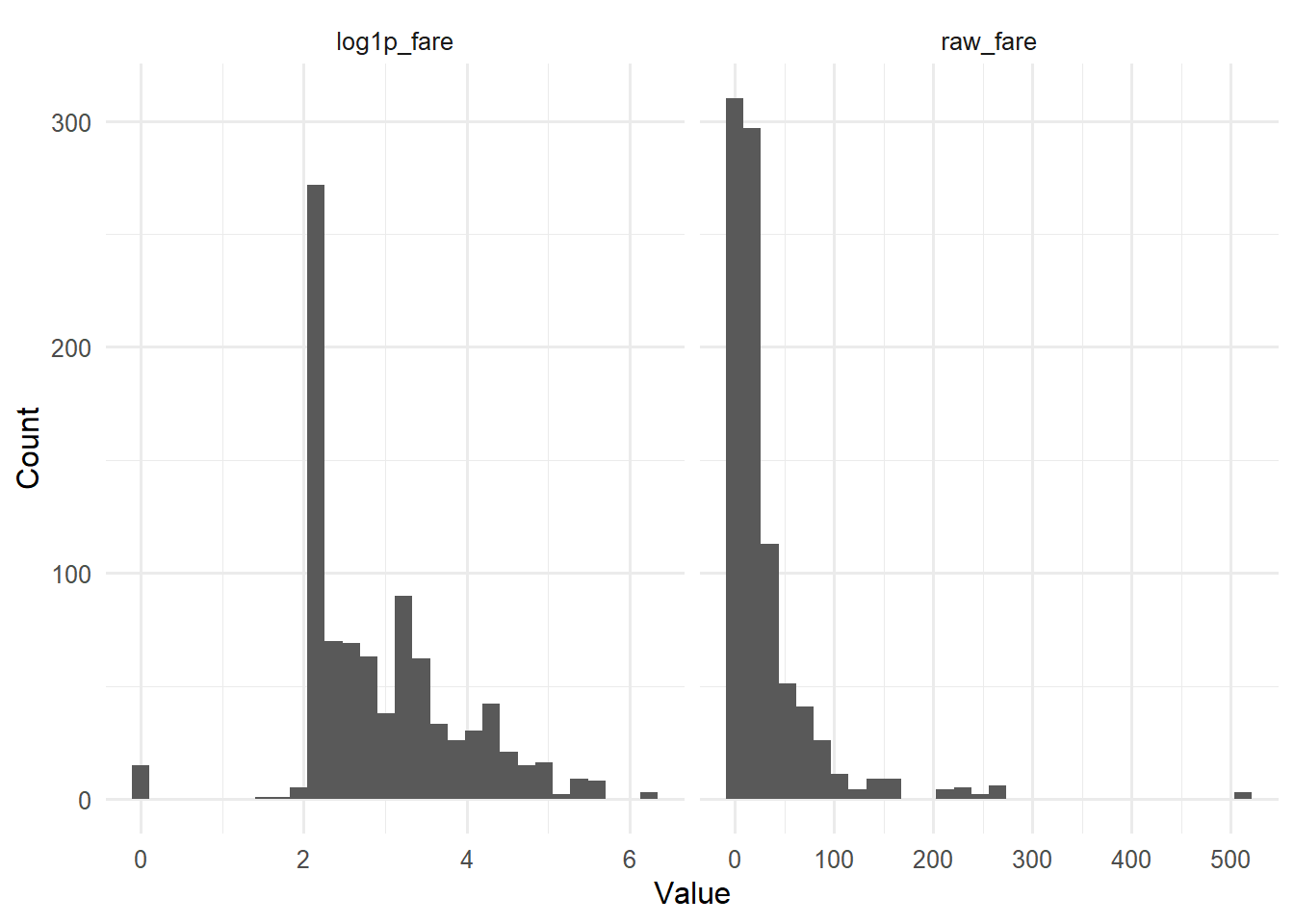

  • Fare: 0 to 512, with 1 missing value. I care that the 3rd quartile is 31.275 and the max is 512.

  • Cabin: It has the most (1014) missing values among a total of 12 features. It’s a variable that represents the ship’s area, but if there’s no way to use it, I think it should be discarded.

  • Embarked: It consists of a total of 3 categories, S is the most, and there are 2 missing values.

When performing a basic exploration of the data, please look at the outputs of various functions besides summary() and str() while comparing them.


3.2 Missing values


This is the process of checking which variables have missing values mentioned above and how many of them exist.

I’m going to check it numerically and visually at the same time using the dplyr, ggplot2, and VIM packages.

You don’t have to use all the code I’ve run, you can use only the parts you think you need or like as you read.


3.2.1 VIM packages


VIM::aggr(full, prop = FALSE, combined = TRUE, numbers = TRUE,
          sortVars = TRUE, sortCombs = TRUE)


 Variables sorted by number of missings:
    Variable Count
    Survived   418
         Age   263
        Fare     1
 PassengerId     0
      Pclass     0
        Name     0
         Sex     0
       SibSp     0
       Parch     0
      Ticket     0
       Cabin     0
    Embarked     0


3.2.2 tidyverse packages


In addition to checking missing values at once using the VIM package, these are methods for checking missing values using various packages that exist in the tidyverse.

First, find the proportion of missing values for each variable with dplyr.


full %>%
  dplyr::summarize_all(funs(sum(is.na(.))/n()))
Warning: `funs()` was deprecated in dplyr 0.8.0.
ℹ Please use a list of either functions or lambdas:

# Simple named list: list(mean = mean, median = median)

# Auto named with `tibble::lst()`: tibble::lst(mean, median)

# Using lambdas list(~ mean(., trim = .2), ~ median(., na.rm = TRUE))
  PassengerId  Survived Pclass Name Sex       Age SibSp Parch Ticket
1           0 0.3193277      0    0   0 0.2009167     0     0      0
          Fare Cabin Embarked
1 0.0007639419     0        0

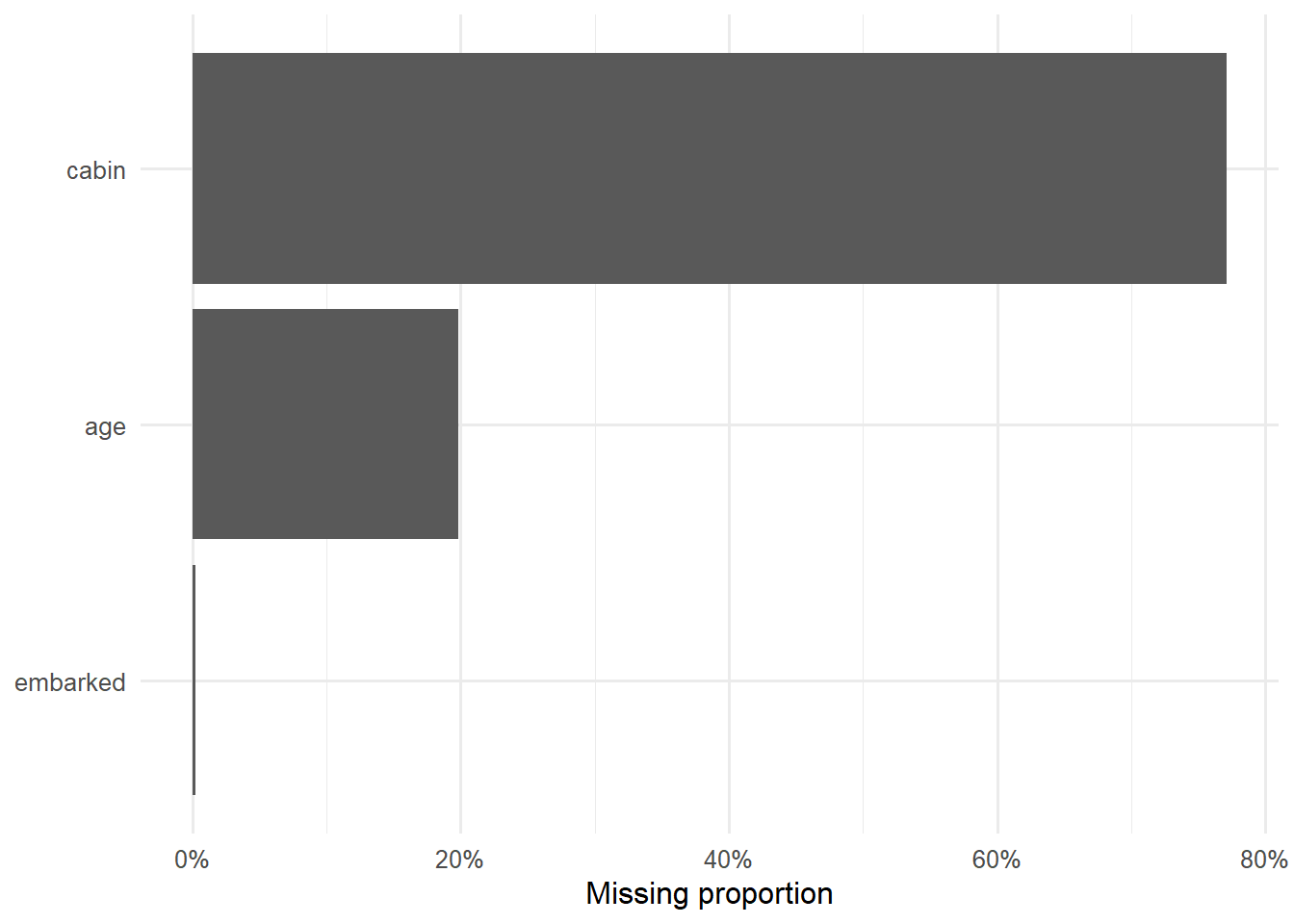

There is a way to check the proportion of missing values that exist in variables, but it can also be checked using visual data.

Please see the two bar plots below.


# Calculate the missing value ratio of each feature -> Data Frame property but has a structure of 1 row and 12 columns.
missing_values <- full %>%
  dplyr::summarize_all(funs(sum(is.na(.))/n()))
Warning: `funs()` was deprecated in dplyr 0.8.0.
ℹ Please use a list of either functions or lambdas:

# Simple named list: list(mean = mean, median = median)

# Auto named with `tibble::lst()`: tibble::lst(mean, median)

# Using lambdas list(~ mean(., trim = .2), ~ median(., na.rm = TRUE))
missing_values %>% head
  PassengerId  Survived Pclass Name Sex       Age SibSp Parch Ticket
1           0 0.3193277      0    0   0 0.2009167     0     0      0
          Fare Cabin Embarked
1 0.0007639419     0        0
# Generate the missing_values obtained above as a 12X2 data frame
missing_values <- tidyr::gather(missing_values,
                                key = "feature", value = "missing_pct")

missing_values %>% head(12)
       feature  missing_pct
1  PassengerId 0.0000000000
2     Survived 0.3193277311
3       Pclass 0.0000000000
4         Name 0.0000000000
5          Sex 0.0000000000
6          Age 0.2009167303
7        SibSp 0.0000000000
8        Parch 0.0000000000
9       Ticket 0.0000000000
10        Fare 0.0007639419
11       Cabin 0.0000000000
12    Embarked 0.0000000000
# Visualization with missing_values
missing_values %>%
  # Aesthetic setting : missing_pct 내림차순으로 정렬
  ggplot(aes(x = reorder(feature, missing_pct), y = missing_pct)) +
  # Bar plot
  geom_bar(stat = "identity", fill = "red") +
  # Title generation
  ggtitle("Rate of missing values in each features") +
  # Title detail setting
  theme(plot.title = element_text(face = "bold",    # 글씨체
                                  hjust = 0.5,      # Horizon(가로비율) = 0.5
                                  size = 15, color = "darkblue")) +
  # x, y axis label setting
  labs(x = "Feature names", y = "Rate") +
  # Plot의 x, y축 변환
  coord_flip()


If you look at the bar graph above, you can check the percentage of missing values for all features.

However, what we are actually curious about is which variables have missing values and how many missing values exist in them.

Therefore, after calculating the proportion of missing values using the purrr package, I extracted only the variables that had at least one and visualized them.


# 변수별 결측치 비율 계산
miss_pct <- purrr::map_dbl(full, function(x){round((sum(is.na(x))/length(x)) * 100, 1) })

# 결측치 비율이 0%보다 큰 변수들만 선택
miss_pct <- miss_pct[miss_pct > 0]

# Data Frame 생성
data.frame(miss = miss_pct, var = names(miss_pct), row.names = NULL) %>%
  # Aesthetic setting : miss 내림차순으로 정렬
  ggplot(aes(x = reorder(var, miss), y = miss)) +
  # Bar plot
  geom_bar(stat = 'identity', fill = 'red') +
  # Plot title setting
  ggtitle("Rate of missing values") +
  # Title detail setting
  theme(plot.title = element_text(face = "bold",    # 글씨체
                                  hjust = 0.5,      # Horizon(가로비율) = 0.5
                                  size = 15, color = "darkblue")) +
  # x, y axis label setting
  labs(x = 'Feature names', y = 'Rate of missing values') +
  # Plot의 x, y축 변환
  coord_flip()


Through this, only 4 variables out of a total of 12 variables have missing values (except Survived because it is due to test data), and there are many missing values in the order of Cabin, Age, Embarked, and Fare.



Now, it is the process of analyzing and exploring feature through visualization.

3.3 Age


age.p1 <- full %>%
  ggplot(aes(Age)) +
  geom_histogram(breaks = seq(0, 80, by = 1), # interval setting
                 col    = "red",              # bar border color
                 fill   = "green",            # bar inner color
                 alpha  = .5) +               # Bar Transparency = 50%

  # Plot title
  ggtitle("All Titanic passengers age hitogram") +
  theme(plot.title = element_text(face = "bold",
                                  hjust = 0.5,      # Horizon (horizontal ratio) = 0.5
                                  size = 15, color = "darkblue"))

age.p2 <- full %>%
# Exclude values where Survived == NA in the test dataset
  filter(!is.na(Survived)) %>%
  ggplot(aes(Age, fill = Survived)) +
  geom_density(alpha = .5) +
  ggtitle("Titanic passengers age density plot") +
  theme(plot.title = element_text(face = "bold", hjust = 0.5,
                                  size = 15, color = "darkblue"))

# Display the two graphs created above on one screen
ggarrange(age.p1, age.p2, ncol=2)


3.4 Pclass


Let’s visualize the frequency of passengers for each Pclass.

After grouping (grouping) by Pclass using dplyr package, Data Frame representing frequency by category was created and visualized with ggplot.


full %>%
  # Get Pclass frequencies using dplyr::group_by(), summarize()
  group_by(Pclass) %>%
  summarize(N = n()) %>%
  # Aesthetic setting
  ggplot(aes(Pclass, N)) +
  geom_col() +
  geom_text(aes(label = N),
            size = 5,
            vjust = 1.2,
            color = "#FFFFFF") +
  # Plot title
  ggtitle("Number of each Pclass's passengers") +
  # Title setting
  theme(plot.title = element_text(face = "bold", hjust = 0.5, size = 15)) +
  # x, y axis name change
  labs(x = "Pclass", y = "Count")


It can be seen that the largest number of passengers boarded in the 3-class cabin.


3.5 Fare


This is a visualization of the ‘Fare’ variable, which represents the amount paid by the passenger.

Two histograms and boxplots were used.

# Histogram
Fare.p1 <- full %>%
  ggplot(aes(Fare)) +
  geom_histogram(col    = "yellow",
                 fill   = "blue",
                 alpha  = .5) +
  ggtitle("Histogram of passengers Fare") +
  theme(plot.title = element_text(face = "bold", hjust = 0.5, size = 15))

# Boxplot
Fare.p2 <- full %>%
  filter(!is.na(Survived)) %>%
  ggplot(aes(Survived, Fare)) +
  # Observations are drawn as gray dots, but overlapping areas are spread out.
  geom_jitter(col = "gray") +
  # Boxplot: 50% transparency
  geom_boxplot(alpha = .5) +
  ggtitle("Boxplot of passengers Fare") +
  theme(plot.title = element_text(face = "bold", hjust = 0.5, size = 15))

ggarrange(Fare.p1, Fare.p2, ncol=2)


You can see that the survivors have a higher ‘Fare’ than the deceased passengers, but not by much.


3.6 Sex

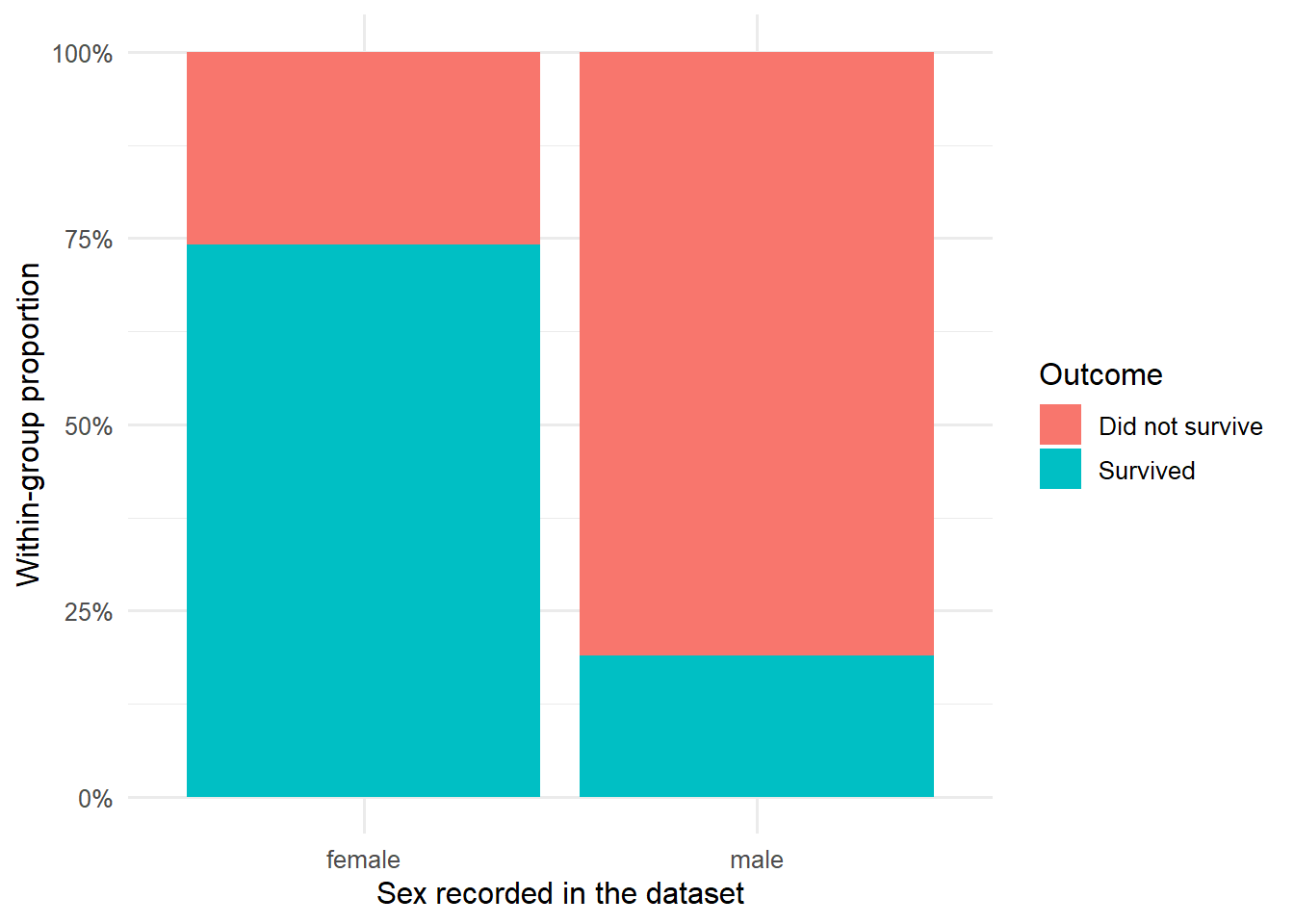

Are there differences in survival rates between men and women? See the plot below.


sex.p1 <- full %>%
  dplyr::group_by(Sex) %>%
  summarize(N = n()) %>%
  ggplot(aes(Sex, N)) +
  geom_col() +
  geom_text(aes(label = N), size = 5, vjust = 1.2, color = "#FFFFFF") +
  ggtitle("Bar plot of Sex") +
  labs(x = "Sex", y = "Count")

sex.p2 <- full[1:891, ] %>%
  ggplot(aes(Sex, fill = Survived)) +
  geom_bar(position = "fill") +
  scale_fill_brewer(palette = "Set1") +
  scale_y_continuous(labels = percent) +
  ggtitle("Survival Rate by Sex") +
  labs(x = "Sex", y = "Rate")

ggarrange(sex.p1, sex.p2, ncol = 2)

mosaicplot(Survived ~ Sex,
           data = full[1:891, ], col = TRUE,
           main = "Survival rate by passengers gender")


If you interpret the graph, you can see that the survival rate is higher for female passengers, while there are far more males than females.



4. Feature engineering & Data Pre-processing


This is the process of filling in missing values (‘NA’) based on the contents of ‘Chapter 3 EDA’ and creating derived variables at the same time.


4.1 Age -> Age.Group


full <- full %>%
# The missing value (NA) is filled in first, and the average of the values excluding the missing value is filled.
  mutate(Age = ifelse(is.na(Age), mean(full$Age, na.rm = TRUE), Age),
# Create a categorical derived variable Age.Group based on Age values
        Age.Group = case_when(Age < 13             ~ "Age.0012",
                               Age >= 13 & Age < 18 ~ "Age.1317",
                               Age >= 18 & Age < 60 ~ "Age.1859",
                               Age >= 60            ~ "Age.60inf"),
# Convert Chr attribute to Factor
        Age.Group = factor(Age.Group))


4.3 SibSp & Parch -> FamilySized


full <- full %>%
 # First create a derived variable called FamilySize by adding SibSp, Parch and 1 (self)
  mutate(FamilySize = .$SibSp + .$Parch + 1,
        # Create a categorical derived variable FamilySized according to the value of FamilySize
         FamilySized = dplyr::case_when(FamilySize == 1 ~ "Single",
                                        FamilySize >= 2 & FamilySize < 5 ~ "Small",
                                        FamilySize >= 5 ~ "Big"),
        # Convert the Chr property FamilySized to a factor
        # Assign new levels according to the size of the group size
         FamilySized = factor(FamilySized, levels = c("Single", "Small", "Big")))


Ceated FamilySized using SibSp and Parch.

Reducing these two variables to one has the advantage of simplifying the model.

A similar use case is to combine height and weight into a BMI index.


4.4 Name & Sex -> title


When looking at the results of ‘Chapter 3.6 Sex’, it was confirmed that the survival rate of women was higher than that of men.

Therefore, in Name, “Wouldn’t it be useful to extract only names related to gender and categorize them?” I think it is.

First, extract only the column vector named Name from full data and save it as title.


# First, extract only the Name column vector and store it in the title vector
title <- full$Name
title %>% head(20)
 [1] Braund, Mr. Owen Harris
 [2] Cumings, Mrs. John Bradley (Florence Briggs Thayer)
 [3] Heikkinen, Miss. Laina
 [4] Futrelle, Mrs. Jacques Heath (Lily May Peel)
 [5] Allen, Mr. William Henry
 [6] Moran, Mr. James
 [7] McCarthy, Mr. Timothy J
 [8] Palsson, Master. Gosta Leonard
 [9] Johnson, Mrs. Oscar W (Elisabeth Vilhelmina Berg)
[10] Nasser, Mrs. Nicholas (Adele Achem)
[11] Sandstrom, Miss. Marguerite Rut
[12] Bonnell, Miss. Elizabeth
[13] Saundercock, Mr. William Henry
[14] Andersson, Mr. Anders Johan
[15] Vestrom, Miss. Hulda Amanda Adolfina
[16] Hewlett, Mrs. (Mary D Kingcome)
[17] Rice, Master. Eugene
[18] Williams, Mr. Charles Eugene
[19] Vander Planke, Mrs. Julius (Emelia Maria Vandemoortele)
[20] Masselmani, Mrs. Fatima
1307 Levels: Abbing, Mr. Anthony ... Zimmerman, Mr. Leo
# Using regular expression and gsub(), extract only names that are highly related to gender and save them as title vectors
title <- gsub("^.*, (.*?)\\..*$", "\\1", title)
title %>% head(20)
 [1] "Mr"     "Mrs"    "Miss"   "Mrs"    "Mr"     "Mr"     "Mr"     "Master"
 [9] "Mrs"    "Mrs"    "Miss"   "Miss"   "Mr"     "Mr"     "Miss"   "Mrs"
[17] "Master" "Mr"     "Mrs"    "Mrs"
# Save the title vector saved above to full again, but save it as a title derived variable
full$title <- title

full$title %>% head(20)
 [1] "Mr"     "Mrs"    "Miss"   "Mrs"    "Mr"     "Mr"     "Mr"     "Master"
 [9] "Mrs"    "Mrs"    "Miss"   "Miss"   "Mr"     "Mr"     "Miss"   "Mrs"
[17] "Master" "Mr"     "Mrs"    "Mrs"


gsub("^.*, (.*?)\\..*$", "\\1", title) In short, this code uses gsub to search for and replace a pattern in the title string, where the pattern is defined by the regular expression "^.*, (.*?)\\..*$" and the replacement is defined by the string "\\1". If you want to understand more about regular expression. Please see my blog post: What are Regular Expressions and How to Use Them in R

Then check what are the Unique titles.


unique(full$title)
 [1] "Mr"           "Mrs"          "Miss"         "Master"       "Don"
 [6] "Rev"          "Dr"           "Mme"          "Ms"           "Major"
[11] "Lady"         "Sir"          "Mlle"         "Col"          "Capt"
[16] "the Countess" "Jonkheer"     "Dona"


You can see that there are 18 categories in total.

If you use this derived variable called ‘title’ as it is, the complexity of the model (especially the tree based model) increases considerably, so you need to reduce the category.

Before that, let’s check the frequency and rate for each category using the descr package.


# Check frequency, ratio by category
descr::CrossTable(full$title)
   Cell Contents
|-------------------------|
|                       N |
|           N / Row Total |
|-------------------------|

|         Capt |          Col |          Don |         Dona |           Dr |
|--------------|--------------|--------------|--------------|--------------|
|            1 |            4 |            1 |            1 |            8 |
|        0.001 |        0.003 |        0.001 |        0.001 |        0.006 |
|--------------|--------------|--------------|--------------|--------------|

|     Jonkheer |         Lady |        Major |       Master |         Miss |
|--------------|--------------|--------------|--------------|--------------|
|            1 |            1 |            2 |           61 |          260 |
|        0.001 |        0.001 |        0.002 |        0.047 |        0.199 |
|--------------|--------------|--------------|--------------|--------------|

|         Mlle |          Mme |           Mr |          Mrs |           Ms |
|--------------|--------------|--------------|--------------|--------------|
|            2 |            1 |          757 |          197 |            2 |
|        0.002 |        0.001 |        0.578 |        0.150 |        0.002 |
|--------------|--------------|--------------|--------------|--------------|

|          Rev |          Sir | the Countess |
|--------------|--------------|--------------|
|            8 |            1 |            1 |
|        0.006 |        0.001 |        0.001 |
|--------------|--------------|--------------|


The frequencies and proportions of the 18 categories are very different.

So let’s narrow these down to a total of five categories.


# Simplify into 5 categories
full <- full %>%
# If you use "==" instead of "%in%", it won't work as you want because of Recyling Rule.
  mutate(title = ifelse(title %in% c("Mlle", "Ms", "Lady", "Dona"), "Miss", title),
         title = ifelse(title == "Mme", "Mrs", title),
         title = ifelse(title %in% c("Capt", "Col", "Major", "Dr", "Rev", "Don",
                                     "Sir", "the Countess", "Jonkheer"), "Officer", title),
         title = factor(title))

# After creating the derived variable, check the frequency and ratio for each category
descr::CrossTable(full$title)
   Cell Contents
|-------------------------|
|                       N |
|           N / Row Total |
|-------------------------|

|  Master |    Miss |      Mr |     Mrs | Officer |
|---------|---------|---------|---------|---------|
|      61 |     266 |     757 |     198 |      27 |
|   0.047 |   0.203 |   0.578 |   0.151 |   0.021 |
|---------|---------|---------|---------|---------|


4.5 Ticket -> ticket.size


As we saw in Chapter 3.1.3 Summary(), the number of passengers (train and test together) is 1309. However, all passengers’ tickets are not different.

See the results of summary() and unique() below.


# We used length() to get only the number of unique categories.
length(unique(full$Ticket))
[1] 929
# Printing all of them was too messy, so only 10 were printed.
head(summary(full$Ticket), 10)
    CA. 2343         1601      CA 2144      3101295       347077       347082
          11            8            8            7            7            7
    PC 17608 S.O.C. 14879       113781        19950
           7            7            6            6


Why are there 929 unique tickets when there are no missing values in feature?

Even the ticket is CA. There are 11 exactly the same number of people as 2343.

Let’s see who the passengers are.


# Filter only 11 passengers with matching tickets
# We don't need to check for all variables, so we only want to look at the variables below.

full %>%
  filter(Ticket == "CA. 2343") %>%
  dplyr::select(Pclass, Name, Age, FamilySized)
   Pclass                              Name      Age FamilySized
1       3        Sage, Master. Thomas Henry 29.88114         Big
2       3      Sage, Miss. Constance Gladys 29.88114         Big
3       3               Sage, Mr. Frederick 29.88114         Big
4       3          Sage, Mr. George John Jr 29.88114         Big
5       3           Sage, Miss. Stella Anna 29.88114         Big
6       3          Sage, Mr. Douglas Bullen 29.88114         Big
7       3 Sage, Miss. Dorothy Edith "Dolly" 29.88114         Big
8       3                   Sage, Miss. Ada 29.88114         Big
9       3             Sage, Mr. John George 29.88114         Big
10      3       Sage, Master. William Henry 14.50000         Big
11      3    Sage, Mrs. John (Annie Bullen) 29.88114         Big


You can see that the 11 passengers above are all from the same family, brothers.

While there are passengers whose tickets are exactly the same, there are also passengers whose tickets are partially matched.

Create a ticket.unique derived variable that represents the number of unique numbers (number of characters) of such a ticket.

Let’s create a derived variable ticket.size with 3 categories based on ticket.unique.


# First of all, ticket.unique is saved as all 0
ticket.unique <- rep(0, nrow(full))

# Extract only the unique ones from ticket features and store them in the tickets vector
tickets <- unique(full$Ticket)

# After extracting only passengers with the same ticket by using overlapping loops, extract and store the length (number of characters) of each ticket.

for (i in 1:length(tickets)) {
  current.ticket <- tickets[i]
  party.indexes <- which(full$Ticket == current.ticket)
    # For loop 중첩
    for (k in 1:length(party.indexes)) {
    ticket.unique[party.indexes[k]] <- length(party.indexes)
    }
  }

# Save ticket.unique calculated above as a derived variable
full$ticket.unique <- ticket.unique

# Create ticket.size variable by dividing it into three categories according to ticket.unique

full <- full %>%
  mutate(ticket.size = case_when(ticket.unique == 1 ~ 'Single',
                                 ticket.unique < 5 & ticket.unique >= 2 ~ "Small",
                                 ticket.unique >= 5 ~ "Big"),
         ticket.size = factor(ticket.size,
                              levels = c("Single", "Small", "Big")))


4.6 Embarked


This is feature with two missing values (NA). In the case of Embarked, replace it with S, which is the most frequent value among the three categories.


full$Embarked <- replace(full$Embarked,               # Specify Data$feature to replace
                         which(is.na(full$Embarked)), # Find only missing values
                         'S')                        # specify the value to replace


4.7 Fare


For Fare, there was only one missing value.

Based on the histogram seen above (Chapter 3.5 Fare), missing values are replaced with 0.


full$Fare <- replace(full$Fare, which(is.na(full$Fare)), 0)


At this point, data preprocessing is complete.

The following is the process of selecting the variables to be used for model creation while exploring the derived variables created so far.

In other words, Feature selection.




5. Relationship to target feature Survived & Feature selection


Prior to full-scale visualization, since the purpose here is to see how well each variable correlates with the survival rate, we did not use the entire full data, but only the train data set that can determine survival and death.

Also, please note that the plot used above may be duplicated as it is.


Data set split

First, use the code below to split preprocessed full data into train and test.

# Before feature selection, select all variables first.

train <- full[1:891, ]

test <- full[892:1309, ]


Total Survival Rate

survival <- train %>%
  count(Survived)

survival
  Survived   n
1        0 549
2        1 342
prop.table(table(train$Survived))

        0         1
0.6161616 0.3838384
survival_ratio <- train %>%
  count(Survived) %>%
  mutate(Percentage = n / sum(n)) %>%
  mutate(Percentage = round(Percentage, 2)*100)

survival_ratio
  Survived   n Percentage
1        0 549         62
2        1 342         38
train %>%
  ggplot() +
  geom_bar(aes(x = Survived, fill = Survived)) +
  geom_text(data = survival,
            aes(x = Survived, y = n, label = n),
            position = position_dodge(width=0.9),
            vjust=-0.25,
            fontface = "bold") +
  geom_label(data = survival_ratio,
             aes(x = Survived, y = Percentage, label = paste0(Percentage, "%"), group = Survived),
             position = position_stack(vjust = 5)) +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5, size=18, color = "#054354")) +
  ggtitle("Titanic Total Survival Rate") +
  scale_x_discrete(name= "Survival Rate", labels = c("Did Not Survive", "Survived")) +
  scale_y_continuous(name = "Passenger Count") +
  scale_fill_discrete(name = "Outcome", labels = c("Did Not Survive", "Survived"))


5.1. Gender

gender <- train %>%
  count(Sex)

gender
     Sex   n
1 female 314
2   male 577
gender_ratio <- train %>%
  group_by(Sex, Survived) %>%
  summarise(Count = n()) %>%
  mutate(Percentage = round(Count/sum(Count)*100))
`summarise()` has grouped output by 'Sex'. You can override using the `.groups`
argument.
gender_ratio
# A tibble: 4 × 4
# Groups:   Sex [2]
  Sex    Survived Count Percentage
  <fct>  <fct>    <int>      <dbl>
1 female 0           81         26
2 female 1          233         74
3 male   0          468         81
4 male   1          109         19

Visualization

train %>%
  ggplot() +
  geom_bar(aes(x = Sex, fill = Survived)) +
  geom_text(data = gender,
            aes(x = Sex, y = n, label = n),
            position = position_dodge(width=0.9),
            vjust=-0.25,
            fontface = "bold") +
  geom_label(data = gender_ratio,
             aes(x = Sex, y = Count, label = paste0(Percentage, "%"), group = Survived),
             position = position_stack(vjust = 0.5)) +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5, size=18, color = "#054354")) +
  ggtitle("Titanic Gender Survival Rate") +
  scale_x_discrete(name= "Gender") +
  scale_y_continuous(name = "Passenger Count") +
  scale_fill_discrete(name = "Outcome", labels = c("Did Not Survive", "Survived"))

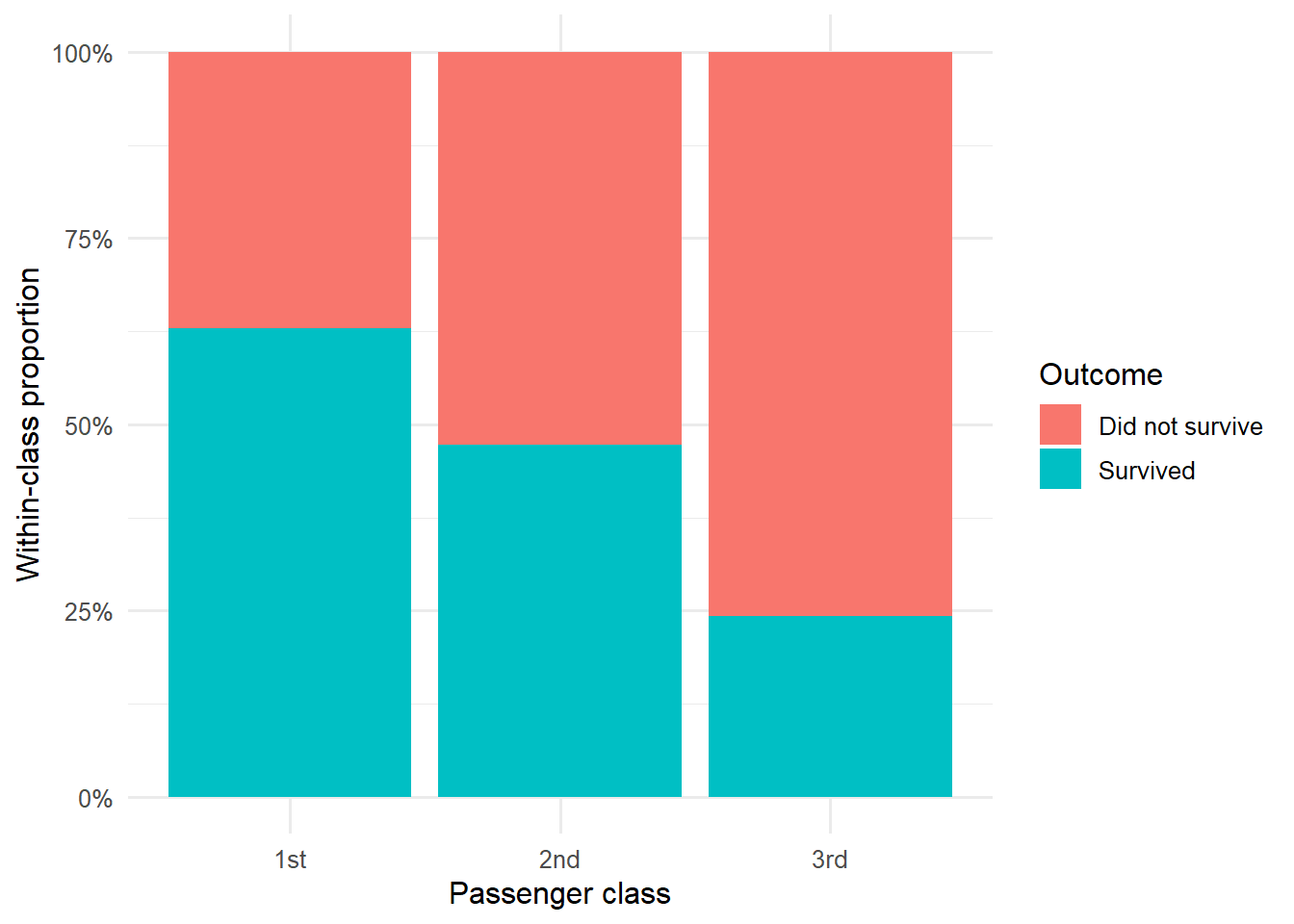

5.2 Pclass


train %>%
  ggplot(aes(Pclass, fill = Survived)) +
  geom_bar(position = "fill") +
# Set plot theme: Converts to a more vivid color.
  scale_fill_brewer(palette = "Set1") +
  # Y axis setting
  scale_y_continuous(labels = percent) +
# Set x, y axis names and plot main title, sub title
  labs(x = "Pclass", y = "Rate",
       title = "Bar plot", subtitle = "How many people survived in each Pclass?")


Gender & Class

pclass_gender <- train %>%
  group_by(Pclass) %>%
  summarise(Count = n())

pclass_gender
# A tibble: 3 × 2
  Pclass Count
  <ord>  <int>
1 1        216
2 2        184
3 3        491
pclass_gender_ratio <- train %>%
  group_by(Pclass, Sex) %>%
  summarise(Count = n()) %>%
  mutate(Percentage = round(Count/sum(Count)*100))
`summarise()` has grouped output by 'Pclass'. You can override using the
`.groups` argument.
pclass_gender_ratio
# A tibble: 6 × 4
# Groups:   Pclass [3]
  Pclass Sex    Count Percentage
  <ord>  <fct>  <int>      <dbl>
1 1      female    94         44
2 1      male     122         56
3 2      female    76         41
4 2      male     108         59
5 3      female   144         29
6 3      male     347         71
train %>%
  ggplot() +
  geom_bar(aes(x = Pclass, fill = Sex)) +
  geom_text(data = pclass_gender,
            aes(x = Pclass, y = Count, label = Count),
            position = position_dodge(width=0.9),
            vjust=-0.25,
            fontface = "bold") +
  geom_label(data = pclass_gender_ratio,
             aes(x = Pclass, y = Count, label = paste0(Percentage, "%"), group = Sex),
             position = position_stack(vjust = 0.5)) +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5, size=18, color = "#054354")) +
  ggtitle("Titanic Gender Proportion by Ticket Class") +
  scale_x_discrete(name= "Pclass") +
  scale_y_continuous(name = "Passenger Count") +
  scale_fill_brewer(name = "Gender", labels = c("Female", "Male"), palette = "Paired")

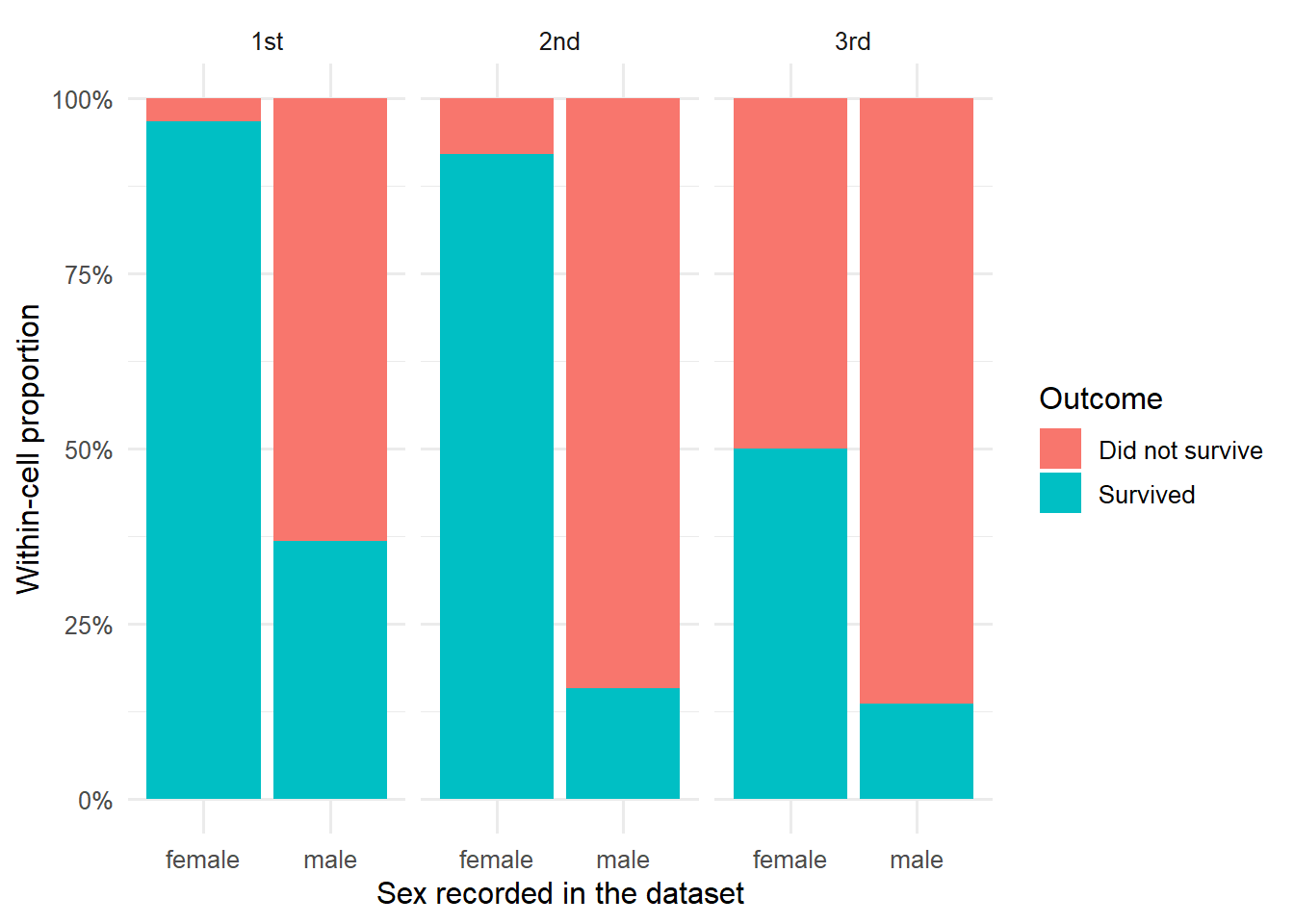

Survival Rate considering Gender & Class

pclass_gender_survived_ratio <- train %>%
  group_by(Pclass, Sex, Survived) %>%
  summarise(Count = n()) %>%
  mutate(Percentage = round(Count/sum(Count)*100))
`summarise()` has grouped output by 'Pclass', 'Sex'. You can override using the
`.groups` argument.
pclass_gender_survived_ratio
# A tibble: 12 × 5
# Groups:   Pclass, Sex [6]
   Pclass Sex    Survived Count Percentage
   <ord>  <fct>  <fct>    <int>      <dbl>
 1 1      female 0            3          3
 2 1      female 1           91         97
 3 1      male   0           77         63
 4 1      male   1           45         37
 5 2      female 0            6          8
 6 2      female 1           70         92
 7 2      male   0           91         84
 8 2      male   1           17         16
 9 3      female 0           72         50
10 3      female 1           72         50
11 3      male   0          300         86
12 3      male   1           47         14
# Using facet_wrap(~ Pclass)
train %>%
  ggplot() +
  geom_bar(aes(x = Sex, fill = Survived)) +
  facet_wrap(~ Pclass) +
  geom_text(data = pclass_gender_ratio,
            aes(x = Sex, y = Count, label = Count),
            position = position_dodge(width=0.9),
            vjust= -1.5,
            fontface = "bold") +
  geom_label(data = pclass_gender_survived_ratio,
             aes(x = Sex, y = Count, label = paste0(Percentage, "%"), group = Survived),
             position = position_stack(vjust = 0.5)) +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5, size=18, color = "#054354")) +
  ggtitle("Titanic Gender Survival Rate by Pclass") +
  scale_x_discrete(name= "Gender by Pclass ") +
  scale_y_continuous(name = "Passenger Count", limits = c(0,360)) +
  scale_fill_discrete(name = "Outcome", labels = c("Did Not Survive", "Survived"))


5.3 Embarked


train %>%
  ggplot(aes(Embarked, fill = Survived)) +
  geom_bar(position = "fill") +
  scale_fill_brewer(palette = "Set1") +
  scale_y_continuous(labels = percent) +
  labs(x = "Embarked", y = "Rate",
       title = "Bar plot", subtitle = "How many people survived in each Embarked?")


5.4 FamilySized


train %>%
  ggplot(aes(FamilySized, fill = Survived)) +
  geom_bar(position = "fill") +
  scale_fill_brewer(palette = "Set1") +
  scale_y_continuous(labels = percent) +
  labs(x = "FamilySized", y = "Rate",
       title = "Bar plot", subtitle = "Survival rate by FamilySized")


It can be seen that there is a difference in survival rate depending on the number of people on board, and that ‘FamilySized’ and ‘Survived’ have a non-linear relationship.

5.5 Age.Group


train %>%
  ggplot(aes(Age.Group, fill = Survived)) +
  geom_bar(position = "fill") +
  scale_fill_brewer(palette = "Set1") +
  scale_y_continuous(labels = percent) +
  labs(x = "Age group", y = "Rate",
       title = "Bar plot", subtitle = "Survival rate by Age group")

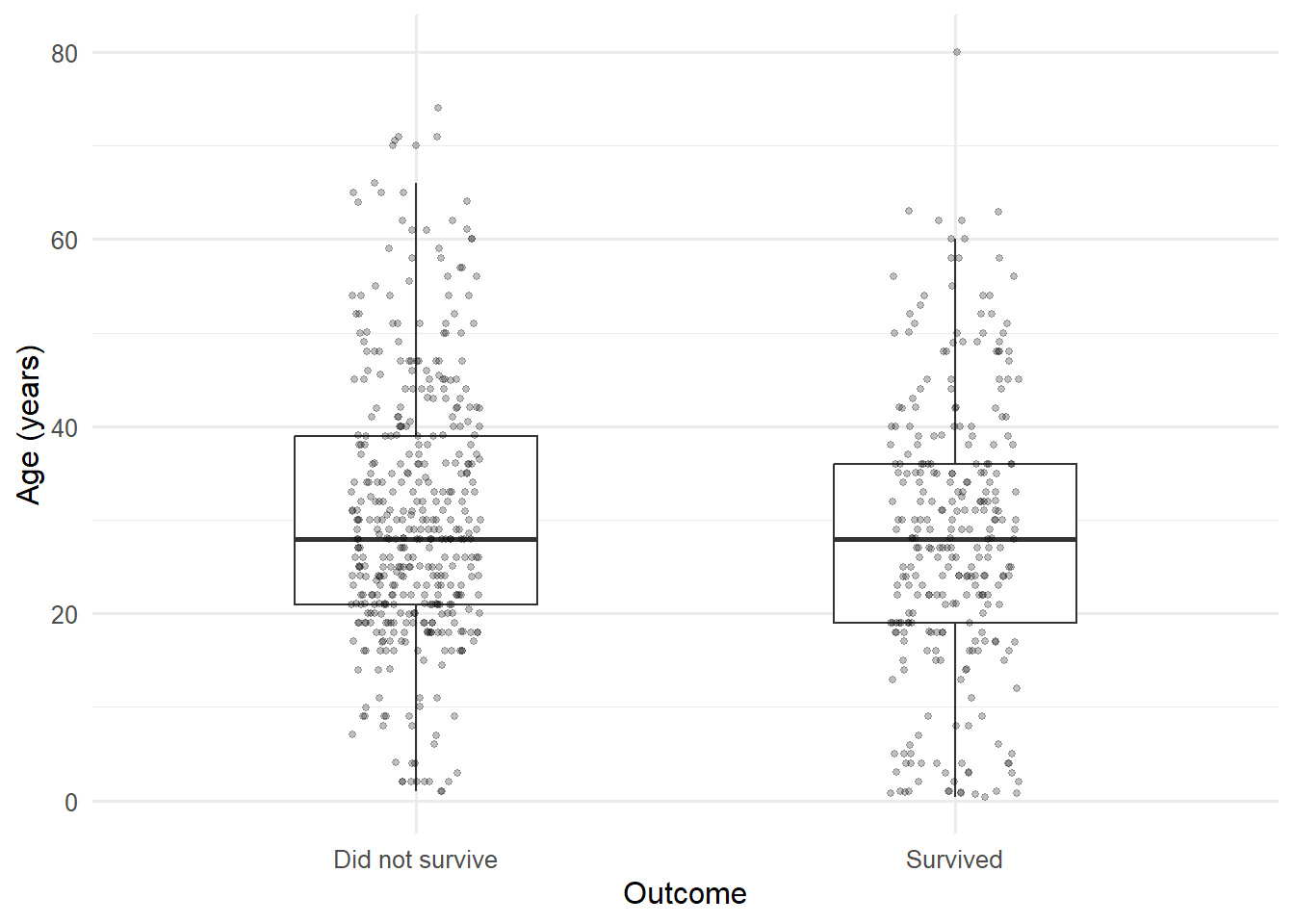

Age distribution & Survival rate

train %>%
  ggplot() +
  geom_histogram(aes(x = Age), binwidth = 5, color = "#355a63", fill = "#96e4f7") +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5, size=18, color = "#054354")) +
  ggtitle("Titanic Age Distribution") +
  scale_x_continuous(name= "Passenger Age", breaks = 5*c(0:18)) +
  scale_y_continuous(name = "Passenger Count")

train %>%
  ggplot() +
  geom_histogram(aes(x = Age, fill = Survived), binwidth = 5, color = "#355a63") +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5, size=18, color = "#054354")) +
  ggtitle("Titanic Survival Rate by Age") +
  scale_x_continuous(name= "Passenger Age", breaks = 5*c(0:18)) +
  scale_y_continuous(name = "Passenger Count") +
  scale_fill_discrete(name = "Outcome", labels = c("Did Not Survive", "Survived"))


5.6 title


train %>%
  ggplot(aes(title, fill = Survived)) +
  geom_bar(position = "fill") +
  scale_fill_brewer(palette = "Set1") +
  scale_y_continuous(labels = percent) +
  labs(x = "title", y = "Rate",
       title = "Bar plot", subtitle = "Survival rate by passengers title")


5.7 ticket.size


train %>%
  ggplot(aes(ticket.size, fill = Survived)) +
  geom_bar(position = "fill") +
  scale_fill_brewer(palette = "Set1") +
  scale_y_continuous(labels = percent) +
  labs(x = "ticket.size", y = "Rate",
       title = "Bar plot", subtitle = "Survival rate by ticket.size")


Survival Rate based on Gender and Class Segmented by Age

train %>%
  ggplot() +
  geom_histogram(aes(x = Age, fill = Survived), binwidth = 5, color = "#355a63") +
  facet_grid(Sex ~ Pclass) +
  theme_bw() +
  theme(plot.title = element_text(hjust = 0.5, size=18, color = "#054354")) +
  ggtitle("Titanic Survival Rate by Age, Gender and Class") +
  scale_x_continuous(name= "Passenger Age", breaks = 10*c(0:8)) +
  scale_y_continuous(name = "Passenger Count") +
  scale_fill_discrete(name = "Outcome", labels = c("Did Not Survive", "Survived"))

Survival Rate based on Gender Class Age & Family Size!!

train %>%
  ggplot() +
  geom_point(aes(x = Age, y = FamilySize, color = Survived), alpha = 0.7) +
  facet_grid(Sex ~ Pclass) +
  theme_bw() +
  theme(plot.title = element_text(size=18, color = "#054354")) +
  ggtitle("Survival Rate by Gender, Class, Age, and Family Size") +
  scale_x_continuous(name= "Passenger Age", breaks = 10*c(0:8)) +
  scale_y_continuous(name = "Family Size") +
  scale_color_discrete(name = "Outcome", labels = c("Did Not Survive", "Survived"))


5.8 Description of actual used features


Now that all the derived variables created so far have been found to be useful, select and save only the variables you will actually use.

The table below is a brief description of the actual selected variables.

variable name Type Description
Survived factor Target feature, survival == 1, death == 0
Sex factor gender, male or female
Pclass factor Cabin Class, First Class (1), Second Class (2), Third Class (3)
Embarked factor Port of embarkation, Southampton (S), Cherbourg (C), Queenstown (Q)
FamilySized factor Family size, a derived variable created using SibSp and Parch, with 3 categories
Age.Group factor Age group, a derived variable created using Age, with 4 categories
title factor A part of the name, a derived variable made using Name, and 5 categories
ticket.size factor The length of the unique part of the ticket, a derived variable created using ticket, with 3 categories


# Excluding ID number, select and save 7 input variables and 1 target variable to actually use
# library(dplyr)
train <- train %>%
  dplyr::select(Pclass, Sex, Embarked, FamilySized,
         Age.Group, title, ticket.size, Survived)

# For Submit, extract the Id column vector and store it in ID

ID <- test$PassengerId

# Select and save the remaining 6 variables except for Id and Survived

# test <- test %>%
#   dplyr::select("Pclass", "Sex", "Embarked", "FamilySized",
#          "Age.Group", "title", "ticket.size", "Survived")

test <- train %>%
  sample_frac(.3)




6. Machine learning model generation


Now is the time to create a machine learning model using the train data set.

Originally, it is correct to create train, validation, test data sets first, create various models, and then select the final model through cross validation (CV, Cross Validation), but these processes are omitted here and RandomForest After creating only, we will predict (estimate) the test data and even create data to Submit to competition.


6.1 Model Training and Comparison of Classification Algorithms

In this section, we will train and compare six different classification models: Logistic Regression, Random Forest, Support Vector Machines (SVM), k-Nearest Neighbors (k-NN), Gradient Boosting, and Naive Bayes. We will assess their performance using accuracy and other evaluation metrics.

# Load necessary libraries
if (!require(caret)) install.packages("caret")
Loading required package: caret
Loading required package: lattice

Attaching package: 'caret'
The following object is masked from 'package:purrr':

    lift
if (!require(e1071)) install.packages("e1071")  # Required for SVM
Loading required package: e1071

Attaching package: 'e1071'
The following objects are masked from 'package:moments':

    kurtosis, moment, skewness
if (!require(gbm)) install.packages("gbm")      # Required for Gradient Boosting
Loading required package: gbm
Loaded gbm 2.2.2
This version of gbm is no longer under development. Consider transitioning to gbm3, https://github.com/gbm-developers/gbm3
if (!require(nnet)) install.packages("nnet")    # Required for Neural Networks
Loading required package: nnet
if (!require(xgboost)) install.packages("xgboost") # Required for XGBoost
Loading required package: xgboost

Attaching package: 'xgboost'
The following object is masked from 'package:dplyr':

    slice
library(caret)
library(e1071)  # For SVM
library(gbm)    # For Gradient Boosting
library(nnet)   # For Neural Networks
library(xgboost)  # For XGBoost

# Set seed for reproducibility
set.seed(1901)

# Adjusted trainControl with no resampling (faster)
train_control <- trainControl(method = "none")  # No cross-validation for faster training

# Define specific hyperparameters for models that require them (only one combination)
tune_grids <- list(
  rf = data.frame(.mtry = 2),  # Random Forest
  svmLinear = data.frame(.C = 1),  # SVM
  knn = data.frame(.k = 5),  # k-NN
  gbm = data.frame(.n.trees = 100, .interaction.depth = 3, .shrinkage = 0.1, .n.minobsinnode = 10),  # GBM
  rpart = data.frame(.cp = 0.01),  # Decision Tree
  xgbTree = expand.grid(
    nrounds = 50,  # Number of boosting rounds
    max_depth = 3,  # Maximum depth of a tree
    eta = 0.1,  # Learning rate
    gamma = 0,  # Minimum loss reduction
    colsample_bytree = 0.8,  # Subsample ratio of columns when constructing each tree
    min_child_weight = 1,  # Minimum sum of instance weight needed in a child
    subsample = 0.8  # Subsample ratio of the training instance
  ),
  nnet = data.frame(.size = 5, .decay = 0.1)  # Neural Networks
)

# List of models and corresponding tuning grids
model_list <- c("glm", "rf", "svmLinear", "knn", "gbm", "rpart", "xgbTree", "nnet")
tune_list <- list(NULL, tune_grids$rf, tune_grids$svmLinear, tune_grids$knn, tune_grids$gbm, tune_grids$rpart,
                  tune_grids$xgbTree, tune_grids$nnet)

# Create a list to store the results
model_results <- list()

# Train models using caret with adjusted trainControl
for (i in seq_along(model_list)) {
  if (!is.null(tune_list[[i]])) {
    model_results[[model_list[i]]] <- train(Survived ~ ., data = train,
                                            method = model_list[i],
                                            trControl = train_control,
                                            tuneGrid = tune_list[[i]])  # Use tuneGrid for models that need it
  } else {
    model_results[[model_list[i]]] <- train(Survived ~ ., data = train,
                                            method = model_list[i],
                                            trControl = train_control)  # No tuneGrid needed for others
  }
}
Iter   TrainDeviance   ValidDeviance   StepSize   Improve
     1        1.2534             nan     0.1000    0.0354
     2        1.1859             nan     0.1000    0.0305
     3        1.1343             nan     0.1000    0.0221
     4        1.0915             nan     0.1000    0.0209
     5        1.0551             nan     0.1000    0.0177
     6        1.0247             nan     0.1000    0.0147
     7        1.0010             nan     0.1000    0.0114
     8        0.9827             nan     0.1000    0.0071
     9        0.9643             nan     0.1000    0.0091
    10        0.9455             nan     0.1000    0.0078
    20        0.8451             nan     0.1000    0.0029
    40        0.7909             nan     0.1000   -0.0016
    60        0.7701             nan     0.1000   -0.0017
    80        0.7577             nan     0.1000   -0.0011
   100        0.7482             nan     0.1000   -0.0024

# weights:  96
initial  value 763.991668
iter  10 value 393.020713
iter  20 value 358.714308
iter  30 value 347.478185
iter  40 value 339.902208
iter  50 value 338.245261
iter  60 value 337.165832
iter  70 value 334.824535
iter  80 value 331.374517
iter  90 value 330.425148
iter 100 value 329.866794
final  value 329.866794
stopped after 100 iterations
# Predict on the test set for each model
predictions <- lapply(model_results, predict, newdata = test)

# Convert predictions to factor if needed
predictions <- lapply(predictions, function(pred) as.factor(pred))

# Assign predictions to individual variables for easy access if needed
pred.logit <- predictions[["glm"]]
pred.rf <- predictions[["rf"]]
pred.svm <- predictions[["svmLinear"]]
pred.knn <- predictions[["knn"]]
pred.gbm <- predictions[["gbm"]]
pred.rpart <- predictions[["rpart"]]
pred.xgbTree <- predictions[["xgbTree"]]
pred.nnet <- predictions[["nnet"]]

# Optionally, print the models to see their configurations
print(model_results)
$glm
Generalized Linear Model

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

$rf
Random Forest

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

$svmLinear
Support Vector Machines with Linear Kernel

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

$knn
k-Nearest Neighbors

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

$gbm
Stochastic Gradient Boosting

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

$rpart
CART

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

$xgbTree
eXtreme Gradient Boosting

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

$nnet
Neural Network

891 samples
  7 predictor
  2 classes: '0', '1'

No pre-processing
Resampling: None

6.2 Evaluation of Model Performance

Now, we will compare the performance of each model using accuracy and other classification metrics such as precision, recall, and F1-score. We’ll use a confusion matrix for each model.

library(caret)
library(tibble)
confusionMatrix(pred.logit, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 148  28
         1  20  71

               Accuracy : 0.8202
                 95% CI : (0.7688, 0.8644)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 7.519e-12

                  Kappa : 0.6082

 Mcnemar's Test P-Value : 0.3123

            Sensitivity : 0.8810
            Specificity : 0.7172
         Pos Pred Value : 0.8409
         Neg Pred Value : 0.7802
             Prevalence : 0.6292
         Detection Rate : 0.5543
   Detection Prevalence : 0.6592
      Balanced Accuracy : 0.7991

       'Positive' Class : 0

# Create confusion matrices for each model
confusionMatrix(pred.logit, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 148  28
         1  20  71

               Accuracy : 0.8202
                 95% CI : (0.7688, 0.8644)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 7.519e-12

                  Kappa : 0.6082

 Mcnemar's Test P-Value : 0.3123

            Sensitivity : 0.8810
            Specificity : 0.7172
         Pos Pred Value : 0.8409
         Neg Pred Value : 0.7802
             Prevalence : 0.6292
         Detection Rate : 0.5543
   Detection Prevalence : 0.6592
      Balanced Accuracy : 0.7991

       'Positive' Class : 0

confusionMatrix(pred.rf, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 149  27
         1  19  72

               Accuracy : 0.8277
                 95% CI : (0.777, 0.871)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 9.768e-13

                  Kappa : 0.6245

 Mcnemar's Test P-Value : 0.302

            Sensitivity : 0.8869
            Specificity : 0.7273
         Pos Pred Value : 0.8466
         Neg Pred Value : 0.7912
             Prevalence : 0.6292
         Detection Rate : 0.5581
   Detection Prevalence : 0.6592
      Balanced Accuracy : 0.8071

       'Positive' Class : 0

confusionMatrix(pred.svm, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 149  28
         1  19  71

               Accuracy : 0.824
                 95% CI : (0.7729, 0.8677)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 2.744e-12

                  Kappa : 0.6156

 Mcnemar's Test P-Value : 0.2432

            Sensitivity : 0.8869
            Specificity : 0.7172
         Pos Pred Value : 0.8418
         Neg Pred Value : 0.7889
             Prevalence : 0.6292
         Detection Rate : 0.5581
   Detection Prevalence : 0.6629
      Balanced Accuracy : 0.8020

       'Positive' Class : 0

confusionMatrix(pred.knn, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 158  27
         1  10  72

               Accuracy : 0.8614
                 95% CI : (0.8141, 0.9005)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : < 2.2e-16

                  Kappa : 0.6922

 Mcnemar's Test P-Value : 0.008529

            Sensitivity : 0.9405
            Specificity : 0.7273
         Pos Pred Value : 0.8541
         Neg Pred Value : 0.8780
             Prevalence : 0.6292
         Detection Rate : 0.5918
   Detection Prevalence : 0.6929
      Balanced Accuracy : 0.8339

       'Positive' Class : 0

confusionMatrix(pred.gbm, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 156  29
         1  12  70

               Accuracy : 0.8464
                 95% CI : (0.7975, 0.8875)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 3.756e-15

                  Kappa : 0.6589

 Mcnemar's Test P-Value : 0.01246

            Sensitivity : 0.9286
            Specificity : 0.7071
         Pos Pred Value : 0.8432
         Neg Pred Value : 0.8537
             Prevalence : 0.6292
         Detection Rate : 0.5843
   Detection Prevalence : 0.6929
      Balanced Accuracy : 0.8178

       'Positive' Class : 0

confusionMatrix(pred.rpart, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 149  29
         1  19  70

               Accuracy : 0.8202
                 95% CI : (0.7688, 0.8644)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 7.519e-12

                  Kappa : 0.6066

 Mcnemar's Test P-Value : 0.1939

            Sensitivity : 0.8869
            Specificity : 0.7071
         Pos Pred Value : 0.8371
         Neg Pred Value : 0.7865
             Prevalence : 0.6292
         Detection Rate : 0.5581
   Detection Prevalence : 0.6667
      Balanced Accuracy : 0.7970

       'Positive' Class : 0

confusionMatrix(pred.xgbTree, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 154  28
         1  14  71

               Accuracy : 0.8427
                 95% CI : (0.7934, 0.8842)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 1.206e-14

                  Kappa : 0.6528

 Mcnemar's Test P-Value : 0.04486

            Sensitivity : 0.9167
            Specificity : 0.7172
         Pos Pred Value : 0.8462
         Neg Pred Value : 0.8353
             Prevalence : 0.6292
         Detection Rate : 0.5768
   Detection Prevalence : 0.6816
      Balanced Accuracy : 0.8169

       'Positive' Class : 0

confusionMatrix(pred.nnet, test$Survived)
Confusion Matrix and Statistics

          Reference
Prediction   0   1
         0 154  26
         1  14  73

               Accuracy : 0.8502
                 95% CI : (0.8016, 0.8908)
    No Information Rate : 0.6292
    P-Value [Acc > NIR] : 1.137e-15

                  Kappa : 0.6707

 Mcnemar's Test P-Value : 0.08199

            Sensitivity : 0.9167
            Specificity : 0.7374
         Pos Pred Value : 0.8556
         Neg Pred Value : 0.8391
             Prevalence : 0.6292
         Detection Rate : 0.5768
   Detection Prevalence : 0.6742
      Balanced Accuracy : 0.8270

       'Positive' Class : 0

# Calculate Accuracy for each model
accuracy.logit <- sum(pred.logit == test$Survived) / length(test$Survived)
accuracy.rf <- sum(pred.rf == test$Survived) / length(test$Survived)
accuracy.svm <- sum(pred.svm == test$Survived) / length(test$Survived)
accuracy.knn <- sum(pred.knn == test$Survived) / length(test$Survived)
accuracy.gbm <- sum(pred.gbm == test$Survived) / length(test$Survived)
accuracy.rpart <- sum(pred.rpart == test$Survived) / length(test$Survived)
accuracy.xgbTree <- sum(pred.xgbTree == test$Survived) / length(test$Survived)
accuracy.nnet <- sum(pred.nnet == test$Survived) / length(test$Survived)

# Compare accuracy for all models
accuracy.results <- tibble(
  Model = c("Logistic Regression", "Random Forest", "SVM", "k-NN", "GBM",
            "Decision Tree", "XGBoost", "Neural Networks"),
  Accuracy = c(accuracy.logit, accuracy.rf, accuracy.svm, accuracy.knn, accuracy.gbm,
               accuracy.rpart, accuracy.xgbTree, accuracy.nnet)
)

accuracy.results %>%
  arrange(-Accuracy)
# A tibble: 8 × 2
  Model               Accuracy
  <chr>                  <dbl>
1 k-NN                   0.861
2 Neural Networks        0.850
3 GBM                    0.846
4 XGBoost                0.843
5 Random Forest          0.828
6 SVM                    0.824
7 Logistic Regression    0.820
8 Decision Tree          0.820


Beyond Accuracy

In a binary classification problem, a confusion matrix consists of four categories:

Positive (Actual) Negative (Actual)
Positive (Predicted) True Positive (TP) False Positive (FP)
Negative (Predicted) False Negative (FN) True Negative (TN)
  • True Positive (TP): Number of (actual) positive cases that are correctly (True) classified

  • False Positive (FP): Number of (actual) negative cases that are incorrectly classified as (predicted) positive

  • True Negative (TN): Number of (actual) negative cases that are correctly classified

  • False Negative (FN): Number of (actual) positive cases that are incorrectly classified as (predicted) negative

Precision & Recall

  • The precision of the model tells us how many of the positive cases that the model predicted were actually positive,

    • The accuracy of the positive predictions made by the model

      \[ \frac{TP}{TP+FP} \]

  • while the recall tells us how many of the actual positive cases were correctly predicted by the model.

    • The ability of the model to correctly identify all positive instances

      \[ \frac{TP}{TP+FN} \]

  • In general, precision is more important when we want to avoid false positives. For example, in a spam classification task, we would want to have high precision to ensure that legitimate emails are not classified as spam. False positives can be costly and can lead to important messages being missed.

  • On the other hand, recall is more important when we want to avoid false negatives. For example, in a medical diagnosis task, we would want to have high recall to ensure that all instances of a disease are correctly identified, even if it means that some healthy individuals are identified as having the disease. False negatives can be costly and can lead to delayed treatment and potentially life-threatening consequences.

What is F1 score?

F1 score is a measure of a machine learning algorithm’s accuracy that combines precision and recall. It is the harmonic mean of precision and recall, and ranges from 0 to 1, with higher values indicating better performance.

F1 score is calculated using the following formula:

\[ F1 = 2 \times \frac{Precision \times Recall}{Precesion + Recall} \]

F1 score = 2 * (precision * recall) / (precision + recall)

where precision is the number of true positives divided by the total number of positive predictions, and recall is the number of true positives divided by the total number of actual positives.

Why use F1 score?

F1 score is useful when the dataset is imbalanced, meaning that the number of positive and negative examples is not equal. In such cases, accuracy alone is not a good measure of the algorithm’s performance, as a high accuracy can be achieved by simply predicting the majority class all the time.

Instead, we need a metric that takes into account both precision and recall, as precision measures the algorithm’s ability to make correct positive predictions, and recall measures the algorithm’s ability to find all positive examples in the dataset.

How to interpret F1 score?

F1 score ranges from 0 to 1, with higher values indicating better performance. An F1 score of 1 means perfect precision and recall, while an F1 score of 0 means that either the precision or recall is 0.

In practice, we aim to achieve a high F1 score while balancing precision and recall based on the problem and its requirements. For example, in medical diagnosis, we may want to prioritize recall over precision to avoid missing any positive cases, while in fraud detection, we may want to prioritize precision over recall to avoid false positives.


# Function to compute precision, recall, F1, and accuracy
get_metrics <- function(pred, actual) {
  cm <- confusionMatrix(factor(pred), factor(actual))
  precision <- cm$byClass["Pos Pred Value"]  # Precision
  recall <- cm$byClass["Sensitivity"]        # Recall
  f1 <- 2 * ((precision * recall) / (precision + recall))  # F1-score
  accuracy <- cm$overall["Accuracy"]          # Accuracy
  return(c(accuracy, precision, recall, f1))
}

# Calculate metrics for each model
metrics.logit <- get_metrics(pred.logit, test$Survived)
metrics.rf <- get_metrics(pred.rf, test$Survived)
metrics.svm <- get_metrics(pred.svm, test$Survived)
metrics.knn <- get_metrics(pred.knn, test$Survived)
metrics.gbm <- get_metrics(pred.gbm, test$Survived)
metrics.rpart <- get_metrics(pred.rpart, test$Survived)
metrics.xgbTree <- get_metrics(pred.xgbTree, test$Survived)
metrics.nnet <- get_metrics(pred.nnet, test$Survived)

# Combine metrics into a data frame
metrics.results <- data.frame(
  Model = c("Logistic Regression", "Random Forest", "SVM", "k-NN", "GBM",
            "Decision Tree", "XGBoost", "Neural Networks"),
  Accuracy = c(metrics.logit[1], metrics.rf[1], metrics.svm[1], metrics.knn[1], metrics.gbm[1],
               metrics.rpart[1], metrics.xgbTree[1], metrics.nnet[1]),
  Precision = c(metrics.logit[2], metrics.rf[2], metrics.svm[2], metrics.knn[2], metrics.gbm[2],
                metrics.rpart[2], metrics.xgbTree[2], metrics.nnet[2]),
  Recall = c(metrics.logit[3], metrics.rf[3], metrics.svm[3], metrics.knn[3], metrics.gbm[3],
             metrics.rpart[3], metrics.xgbTree[3], metrics.nnet[3]),
  F1_Score = c(metrics.logit[4], metrics.rf[4], metrics.svm[4], metrics.knn[4], metrics.gbm[4],
               metrics.rpart[4], metrics.xgbTree[4], metrics.nnet[4])
)

# Print the results
print(metrics.results)
                Model  Accuracy Precision    Recall  F1_Score
1 Logistic Regression 0.8202247 0.8409091 0.8809524 0.8604651
2       Random Forest 0.8277154 0.8465909 0.8869048 0.8662791
3                 SVM 0.8239700 0.8418079 0.8869048 0.8637681
4                k-NN 0.8614232 0.8540541 0.9404762 0.8951841
5                 GBM 0.8464419 0.8432432 0.9285714 0.8838527
6       Decision Tree 0.8202247 0.8370787 0.8869048 0.8612717
7             XGBoost 0.8426966 0.8461538 0.9166667 0.8800000
8     Neural Networks 0.8501873 0.8555556 0.9166667 0.8850575
